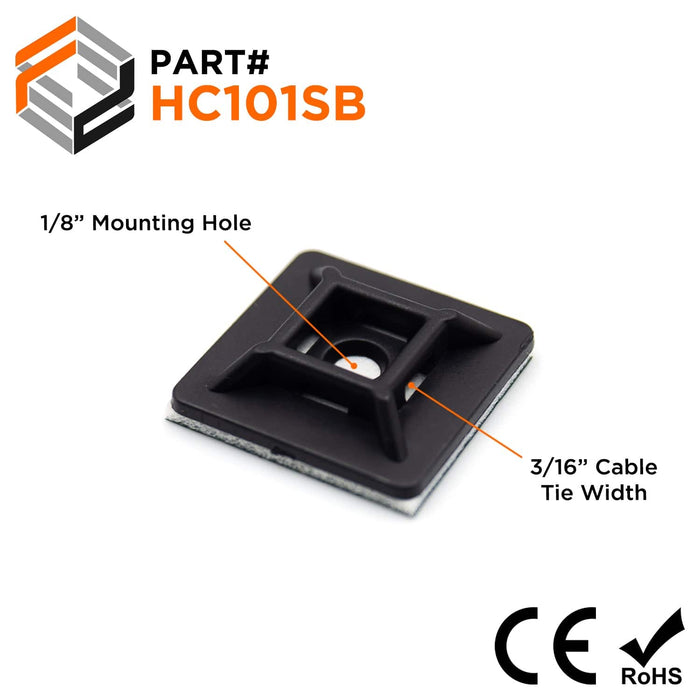

HC101SB - Self-adhesive Tie Mounts 19.5 x 19.5 x 4mm - Black - No Mounting Holes
$8.50
SKU HC101SB-100
Self-adhesive tie mounts offer lightweight support to wire bundles. For added support of heavy wire bundles, tie mounts are also available with a screw mounting hole. Always apply on a clean, smooth, grease-free surface.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size: | 19.5 x 19.5 x 4mm |
| Color: | Black |
| L: | 19.5mm (0.767") |
| W: | 19.5mm (0.767") |
| H: | 4mm (0.16") |
| T: | 4.5mm (0.18") |
| Mounting Hole: | N/A |
| Material: | UL Approved 94UV-2 Nylon 6/6 |
| Service Temperature: | -40°F to 185°F (-40°C to 85°C) |
| UL Approved: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
