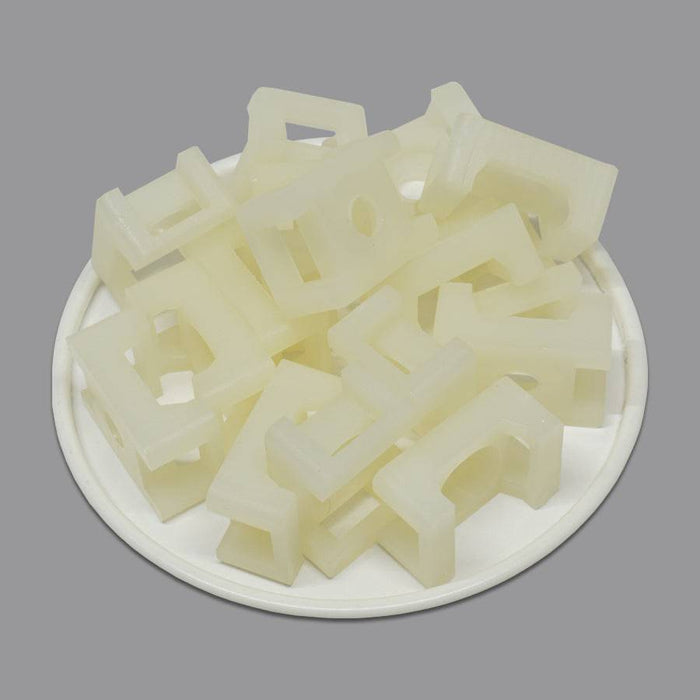

HC2L - Saddle Tie Mount - 0.91 x 0.63 x 0.39" - Natural

$7.14
SKU HC2L
Pack Quantity

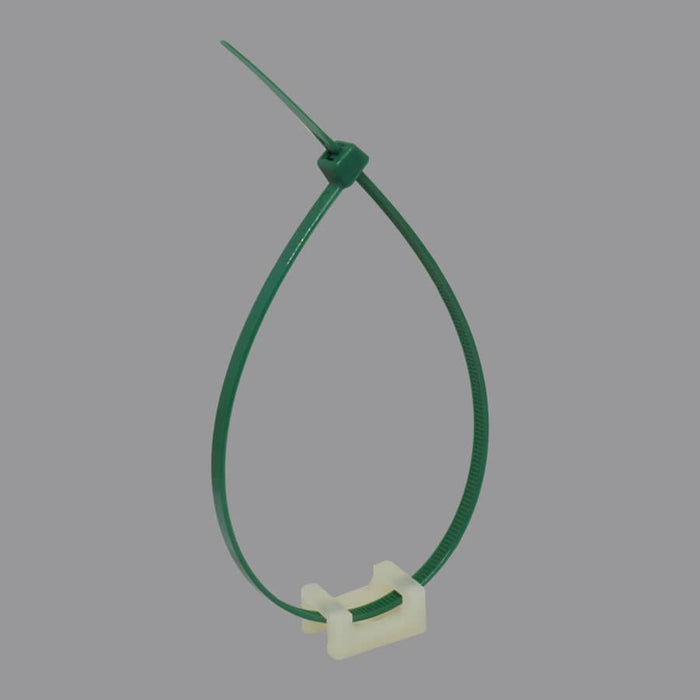

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.

Dimensions & Features:

Size: 0.91 x 0.63 x 0.39"
Color: Natural
H: 9.8mm (0.39")
L: 23mm (0.91")
W: 16mm (0.63")
T: 9.0mm (0.35")
B: 6.5mm (0.26")
Mounting: Screw Mounted
Material: UL Approved 94UV-2 Nylon
Environment: Indoor
Flammability: V-2
Gamma Radiation: 1x10 Rads
Temp Rating: -400°F to 185°F (-240°C to 85°C)
UL Recognized: No
RoHS Compliant: Yes
CE Certified: Yes

Technical Drawing:
