HC2LB - Saddle Tie Mount - 0.91 x 0.63 x 0.39" - Black
Sold out
Original price
$5.08
-
Original price
$5.08
Original price
$5.08
$5.08
-
$5.08
Current price
$5.08
SKU HC2LB
Availability:
Out of stock

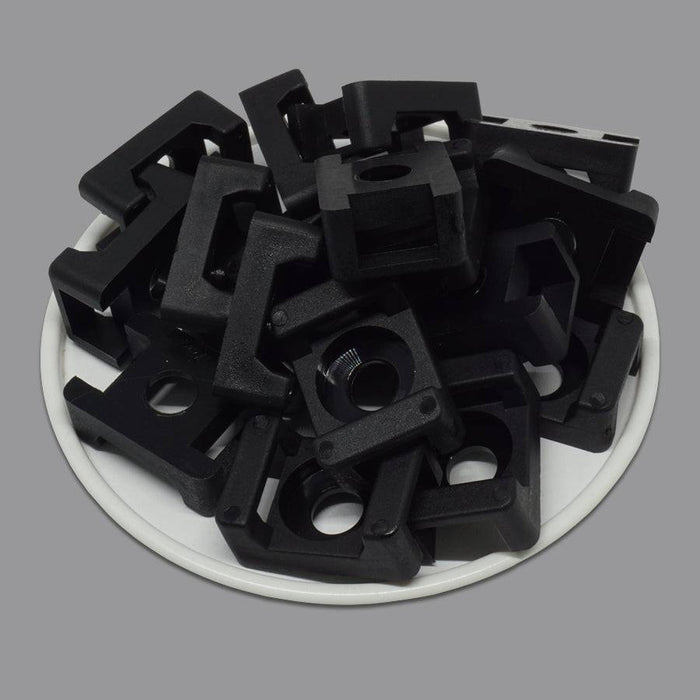

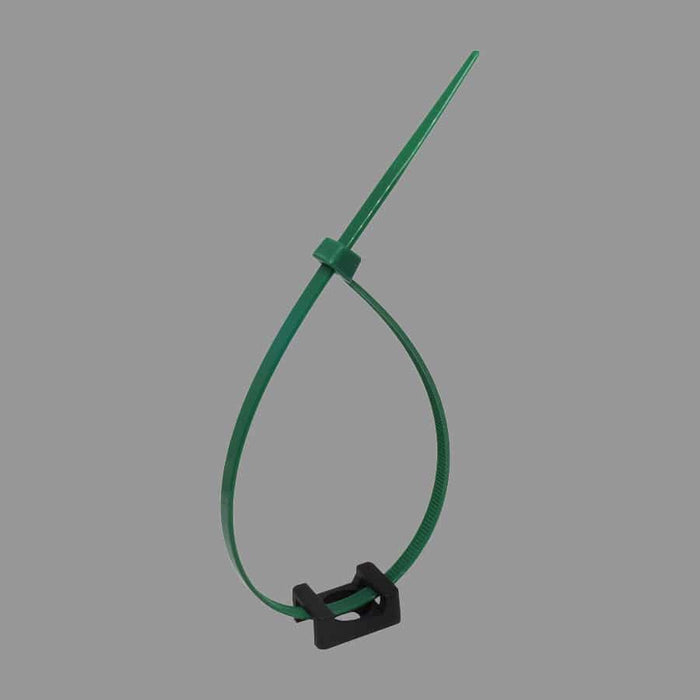

Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Size: | 0.91 x 0.63 x 0.39" |
| Color: | Black |
| H: | 9.8mm (0.39") |
| L: | 23mm (0.91") |
| W: | 16mm (0.63") |
| T: | 9.0mm (0.35") |
| B: | 6.5mm (0.26") |
| Mounting: | Screw Mounted |
| Material: | UL Approved 94UV-2 Nylon |
| Environment: | Indoor |
| Flammability: | V-2 |
| Gamma Radiation: | 1x10 Rads |
| Temp Rating: | -400°F to 185°F (-240°C to 85°C) |
| UL Recognized: | No |
| RoHS Compliant: | Yes |
| CE Certified: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:None
