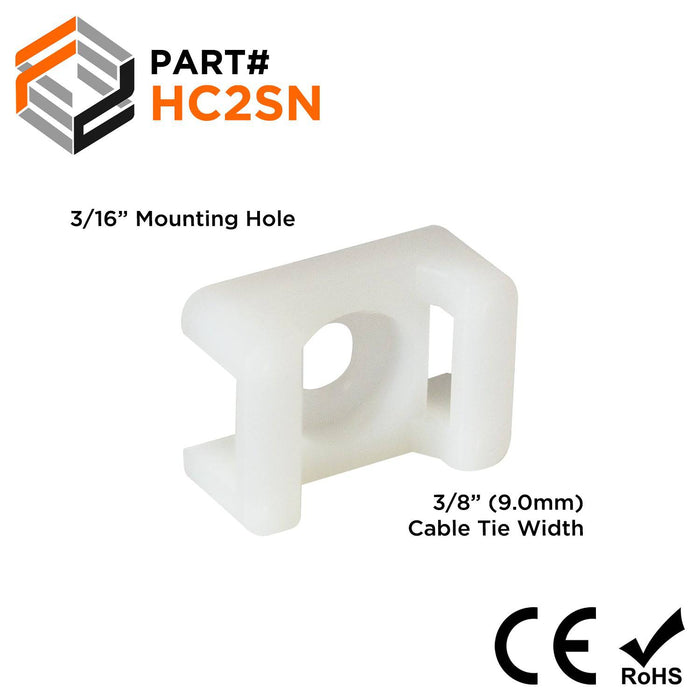

15/16"L x 5/8"W Nylon Saddle Tie Mounts - Tie Width: 3/8", Screw Width: 3/16", Natural, 100 Pieces

Sold out
Original price $7.66 - Original price $7.66
Original price
$7.66
$7.66 - $7.66
Current price $7.66
SKU HC2SN
Availability:
Out of stock
Pack Quantity: 100 Pieces
Saddle Tie Mounts provide a saddle for wire/cable runs. They are designed for maximum stability when securing bundles of wires/cables.

Dimensions & Features:

Size (LxWxH): 0.91 x 0.63 x 0.39"
Color: Natural
L: 23mm (0.91")
W: 16mm (0.63")
H: 10mm (0.39")
T (Cable Tie Slot Width): 9.0mm (0.35")
B (Fixed Hole Size): 5.2mm (0.20")
Mounting: Screw Mounted
Material: UL Approved 94UV-2 Nylon
Environment: Indoor
Flammability (Fire Rating): UL 94V-2
Gamma Radiation: 1x10 Rads
Temp Rating: -400°F to 185°F (-240°C to 85°C)
UL Recognized: No
RoHS Compliant: Yes
CE Certified: Yes

Technical Drawing:
