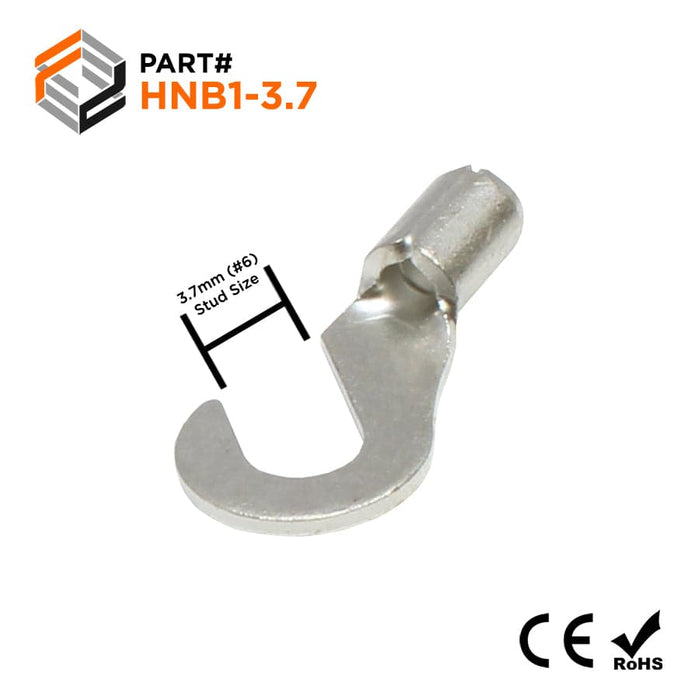

22-16 AWG Non Insulated Hook Terminals, #6 Stud, Brazed Seam, UL, - HNB1-3.7

Original price $9.26 - Original price $9.26
Original price
$9.26
$9.26 - $9.26
Current price $9.26
SKU HNB1-37
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

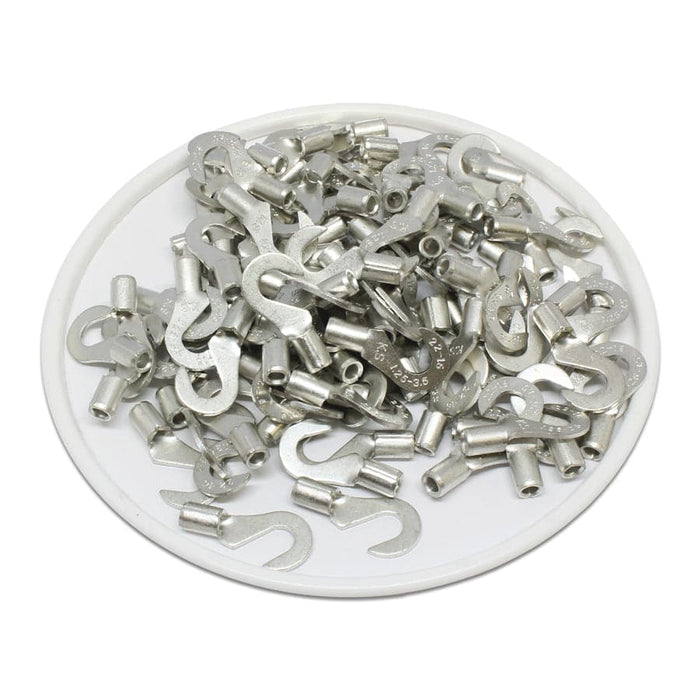

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 22-16 AWG
T: 0.03" (0.75mm)
L: 0.622" (15.8mm)
F: 0.276" (7.0mm)
E: 0.189" (4.8mm)
W: 0.315" (8.0mm)
D: 0.134" (3.4mm)
D1: 0.067" (1.7mm)
D2: 0.146" (3.7mm)
Terminal Material: Tin-Plated Copper
Stud Size: #6 Stud
Seam: Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:
