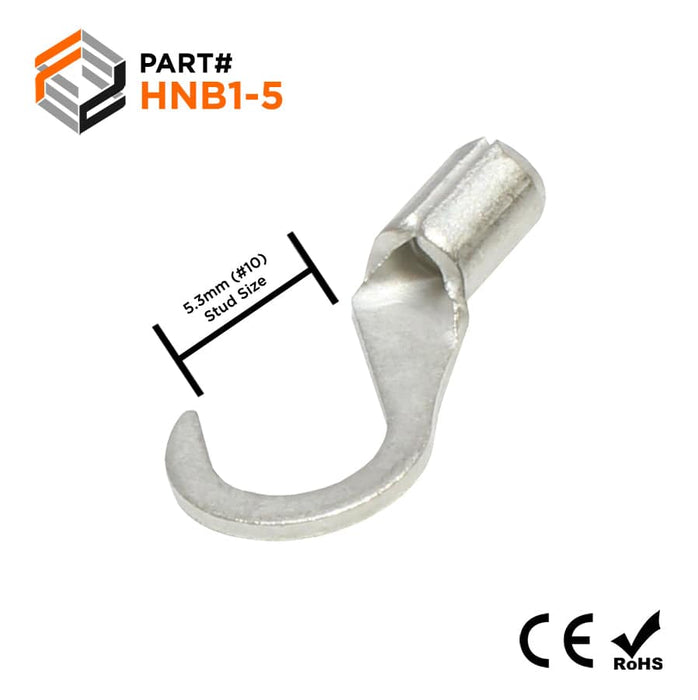

22-16 AWG Non Insulated Hook Terminals, #10 Stud, Brazed Seam, UL, - HNB1-5

Original price $8.68 - Original price $8.68
Original price
$8.68
$8.68 - $8.68
Current price $8.68
SKU HNB1-5
Availability:
in stock, ready to be shipped

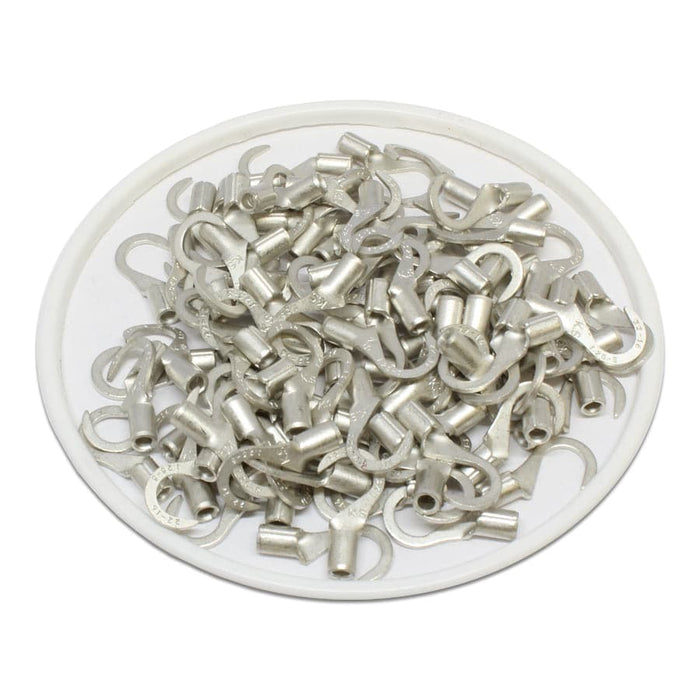

Pack Quantity: 100 Pieces
true

NON INSULATED HOOK TERMINALS

Non insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 22-16 AWG
T: 0.03" (0.75mm)
L: 0.85" (15.8mm)
F: 0.27" (7.0mm)
E: 0.19" (4.8mm)
W: 0.31" (8.0mm)
D: 0.13" (3.4mm)
D1: 0.07" (1.7mm)
D2: 0.20" (5.3mm)
Terminal Material: Tin-Plated Copper
Stud Size: #10 Stud
Seam: Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:
