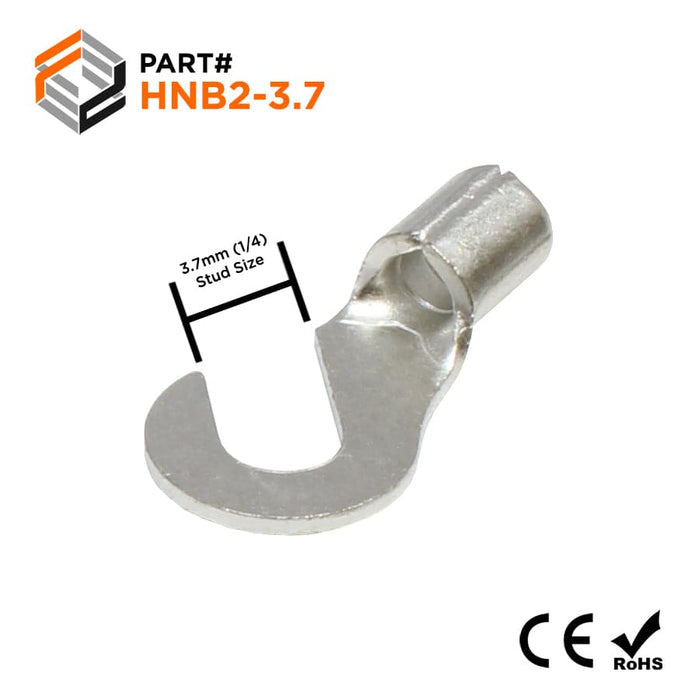

HNB2-3.7 - Non Insulated Hook Terminals 16-14AWG

$12.71
SKU HNB2-37

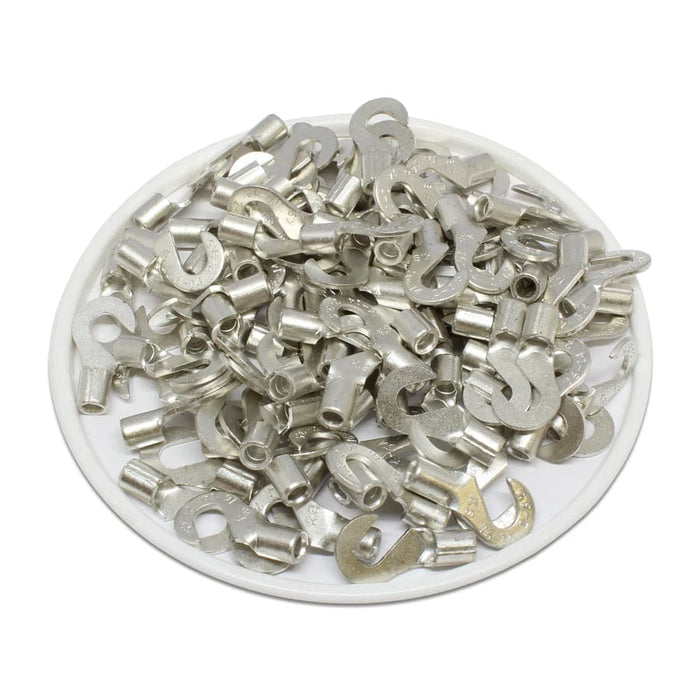

Piece Quantity
Non insulated hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

Wire Range: 22-16 AWG
T: 0.03" (0.8mm)
L: 0.66" (16.8mm)
F: 0.29" (7.4mm)
E: 0.19" (4.8mm)
W: 0.33" (8.5mm)
D: 0.16" (4.1mm)
D1: 0.09" (2.3mm)
D2: 0.14" (3.7mm)
Terminal Material: Tin-Plated Copper
Stud Size: #6 Stud
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
McMaster-Carr: 7472K34
