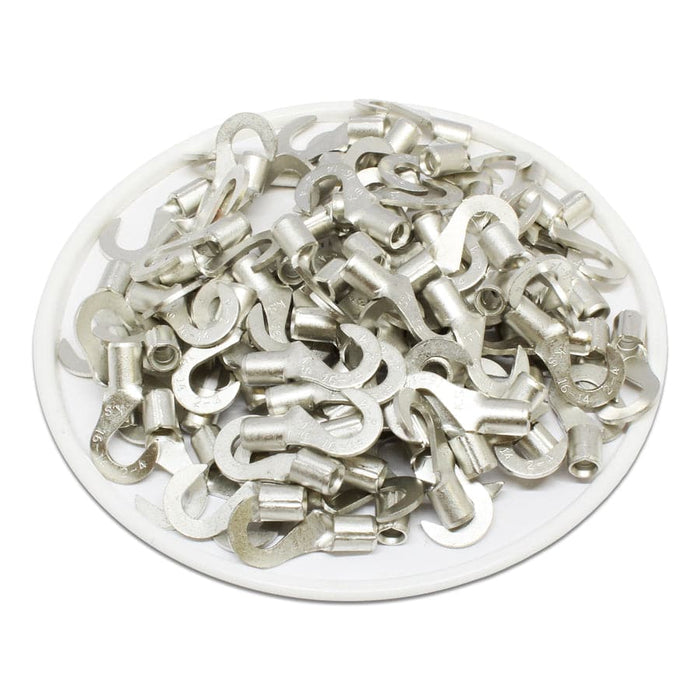

16-14 AWG Non Insulated Hook Terminals, #8 Stud, Brazed Seam, UL, - HNB2-4

Original price $11.89 - Original price $11.89
Original price
$11.89
$11.89 - $11.89
Current price $11.89
SKU HNB2-4
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 16-14 AWG
T: 0.03" (0.8mm)
L: 0.66" (16.8mm)
F: 0.29" (7.4mm)
E: 0.19" (4.8mm)
W: 0.33" (8.5mm)
D: 0.16" (4.1mm)
D1: 0.09" (2.3mm)
D2: 0.16" (4.3mm)
Terminal Material: Tin-Plated Copper
Stud Size: #8 Stud
Seam:  Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
McMaster-Carr: 7472K35
