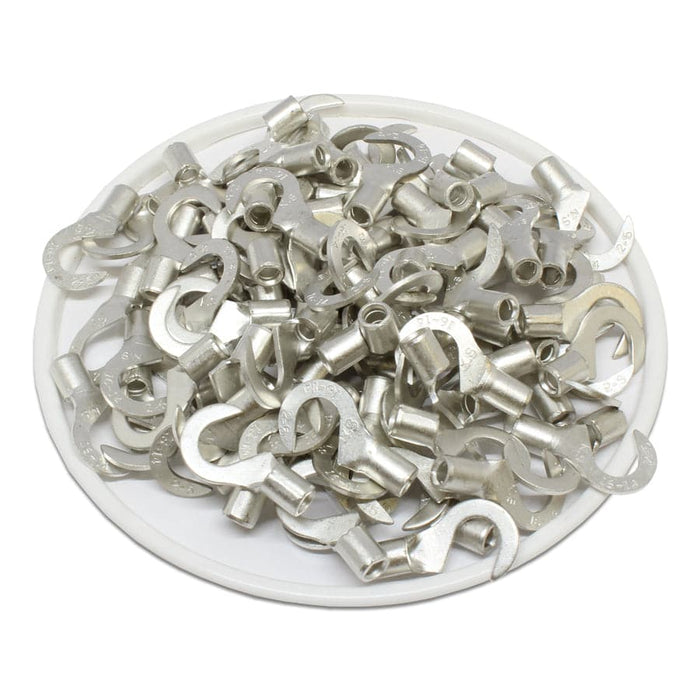

16-14 AWG Non Insulated Hook Terminals, #10 Stud, Brazed Seam, UL, - HNB2-5
Original price
$12.08
-
Original price
$12.08
Original price
$12.08
$12.08
-
$12.08
Current price
$12.08
SKU HNB2-5
Availability:
in stock, ready to be shipped
NON INSULATED HOOK TERMINALS
Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
| Wire Range: | 16-14 AWG |
| T: | 0.03" (0.8mm) |
| L: | 0.66" (16.8mm) |
| F: | 0.29" (7.4mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.37" (9.5mm) |
| D: | 0.16" (4.1mm) |
| D1: | 0.09" (2.3mm) |
| D2: | 0.20" (5.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #10 Stud |
| Seam: | Brazed |
| Temperature Rating: | 105oC - 600 Volts |
| AMP Rating: | 9-17AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 7472K36
