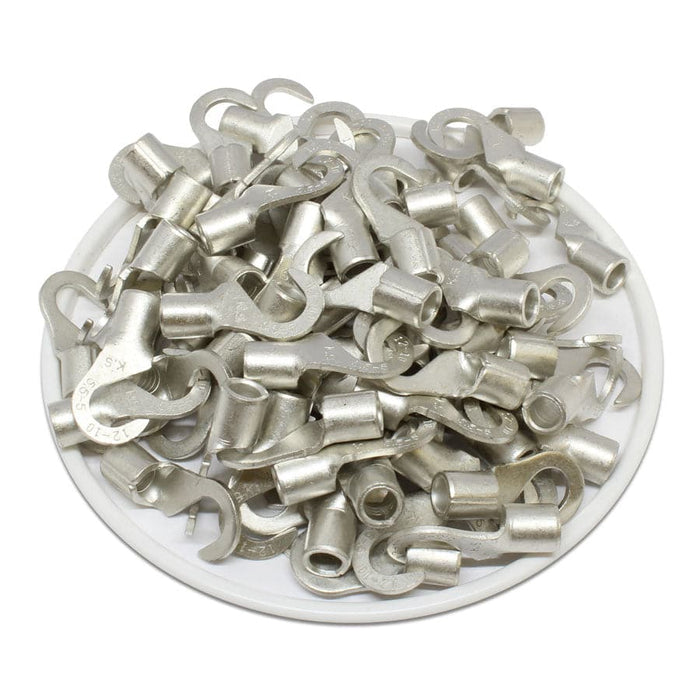

12-10 AWG Non Insulated Hook Terminals, 1/4" Stud, Brazed Seam, UL, - HNB5-5

Original price $20.76 - Original price $20.76
Original price
$20.76
$20.76 - $20.76
Current price $20.76
SKU HNB5-5
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED HOOK TERMINALS

Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.

INFORMATION & SPECIFICATIONS:

Wire Range: 12-10 AWG
T: 0.03" (1.00mm)
L: 0.88" (22.5mm)
F: 0.40" (10.3mm)
E: 0.23" (6.0mm)
W: 0.47" (12.0mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.25" (6.2mm)
Terminal Material: Tin-Plated Copper
Stud Size: 1/4 Stud
Seam: Brazed
Temperature Rating: 105oC - 600 Volts
AMP Rating: 9-17AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
McMaster-Carr: 7472K73
