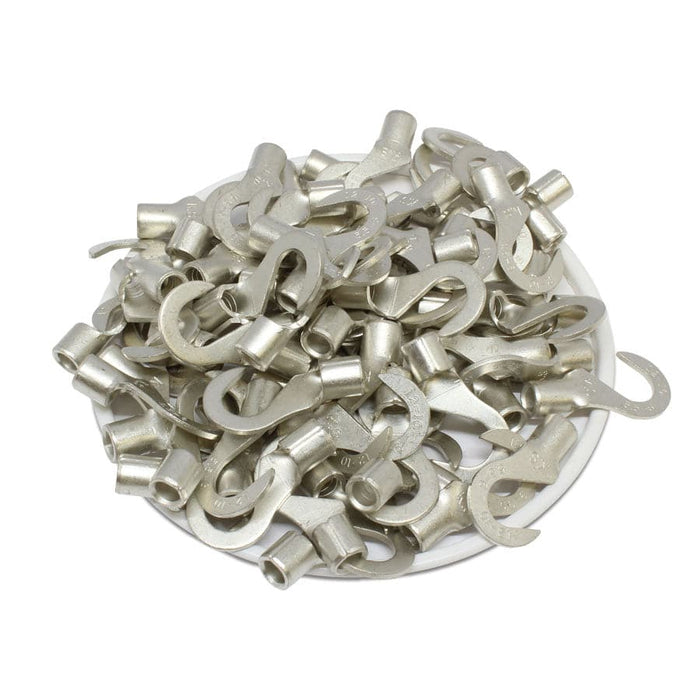

12-10 AWG Non Insulated Hook Terminals, 1/4" Stud, Brazed Seam, UL, - HNB5-6
Original price
$24.36
-
Original price
$24.36
Original price
$24.36
$24.36
-
$24.36
Current price
$24.36
SKU HNB5-6
Availability:
in stock, ready to be shipped
NON INSULATED HOOK TERMINALS
Hook terminals combine the security of a ring terminal with the practicality of fork terminals. They allow the end user to quickly and easily terminate a connection without the need to remove the fastening screw.
INFORMATION & SPECIFICATIONS:
Wire Range: | 12-10 AWG |
T: | 0.03" (1.00mm) |
L: | 0.88" (22.5mm) |
F: | 0.40" (10.3mm) |
E: | 0.23" (6.0mm) |
W: | 0.47" (12.0mm) |
D: | 0.22" (5.6mm) |
D1: | 0.13" (3.4mm) |
D2: | 0.25" (6.2mm) |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/4 Stud |
Seam: | Brazed |
Temperature Rating: | 105oC - 600 Volts |
AMP Rating: | 9-17AMP |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Non_Insulated_Hook_Terminals-01.jpg?v=1573570032)
Cross References
Cross Reference Parts:McMaster-Carr: 7472K73
