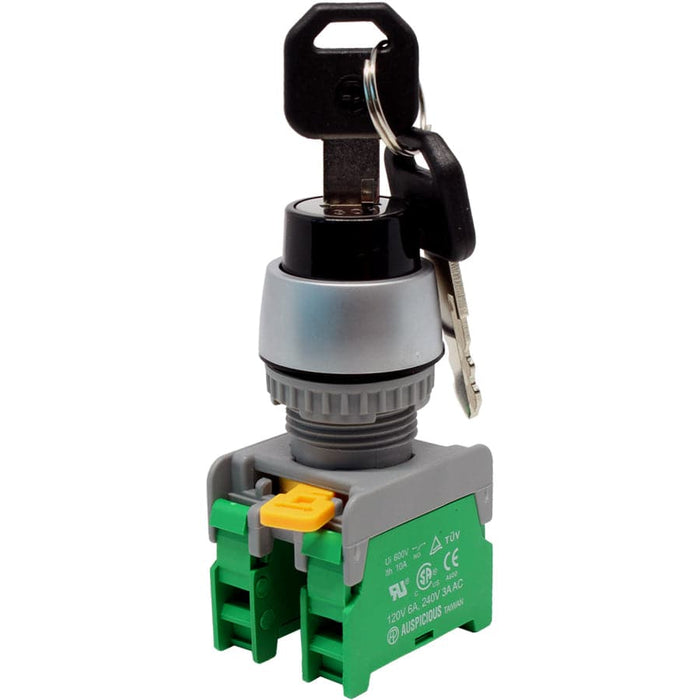

KS22-2/O-BK - Drawable Key Switch - 2 Contact (2/O) - 3 Positions (1-0-2) - Black
Original price
$14.88
-
Original price
$14.88
Original price
$14.88
$14.88
-
$14.88
Current price
$14.88
SKU KS22-2O-BK
Availability:
in stock, ready to be shipped
Key switches operate much like twist knob switches. However the switch cannot be accessed without the key. Once the key is inserted, you simply need to turn it in order to open/close your electrical circuit connection. Then release it back to its default position to close/open it again.
Dimensions & Features:
None
Dimensions & Features:
Type: | Key Selector Switch |
Mounting Hole Size: | 22mm |
Color: | Black |
Type of Contact: | 2/O |
Number of Contacts: | 2 |
Positions: | 1-0-2 |
Voltage Rating: | 240V |
Enclosure Material: | Reinforced Thermoplastic |
Contact Material: | Silver |
Protection Degree: | IP 65 |
Storage Temperature: | -40oC to 80oC |
Operating Temperature: | -25oC to 70oC |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Cross References
Cross Reference Parts:None
