LB210 - 2AWG Long Compression Lug - #10 Stud Size - Ferrules Direct

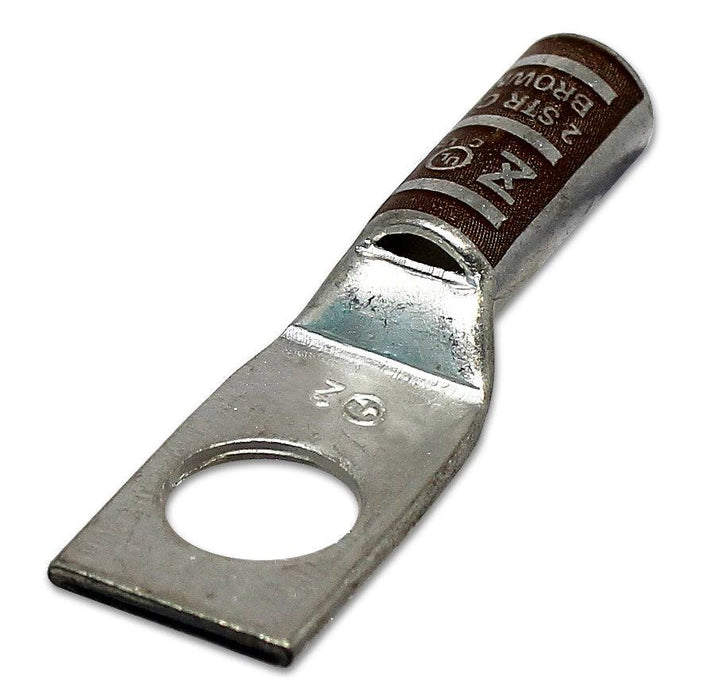

LB210 - 2AWG Long Compression Lug - #10 Stud Size

$1.20 - $1.20
$1.20
$1.20 - $1.20
$1.20
SKU LB210
Availability:
in stock, ready to be shipped
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Stud Size: #10
Color: Brown
L: 44.3mm (1.74")
L1: 15.2mm (0.60")
D: 15.8mm (0.62")
D1: 10.7mm (0.42")
D2: 8.5mm (0.33")
B: 24.5mm (0.96")
E: 5.5mm (0.22")
F: 2.1mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35 KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
