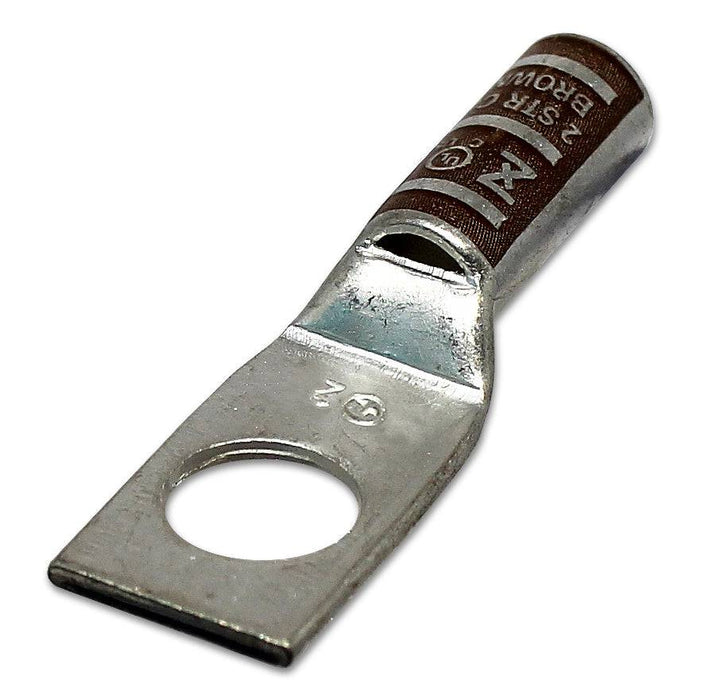

LB238 - 2AWG Long Compression Lug - 3/8" Stud Size
Original price
$1.26
-
Original price
$1.26
Original price
$1.26
$1.26
-
$1.26
Current price
$1.26
SKU LB238
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
Burndy Hubbell: YAZ2CTC38
None:
Dimensions & Features:
| Wire Size: | 2 AWG |
| Stud Size: | 3/8" |
| Color: | Brown |
| L: | 50.1mm (1.97") |
| L1: | 21.1mm (0.83") |
| D: | 15.8mm (0.62") |
| D1: | 10.7mm (0.42") |
| D2: | 8.5mm (0.33") |
| B: | 24.5mm (0.96") |
| E: | 10.4mm (0.41") |
| F: | 2.1mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 170A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy Hubbell: YAZ2CTC38
None:
