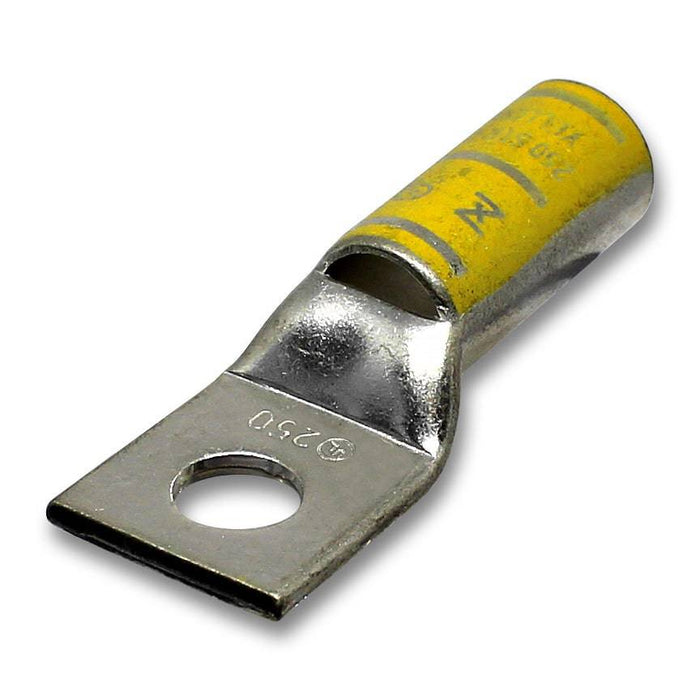

LB25078 - 250 MCM Long Compression Lug - 7/8" Stud Size
Original price
$4.94
-
Original price
$4.94
Original price
$4.94
$4.94
-
$4.94
Current price
$4.94
SKU LB25078
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 250MCM |
| Stud Size: | 7/8" |
| Color: | Yellow |
| L: | 85.7mm (3.37") |
| L1: | 36.8mm (1.45") |
| D: | 30.4mm (1.20") |
| D1: | 19.1mm (0.75") |
| D2: | 16.0mm (0.63") |
| B: | 40.0mm (1.57") |
| E: | 23.1mm (0.91") |
| F: | 2.7mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 405A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
