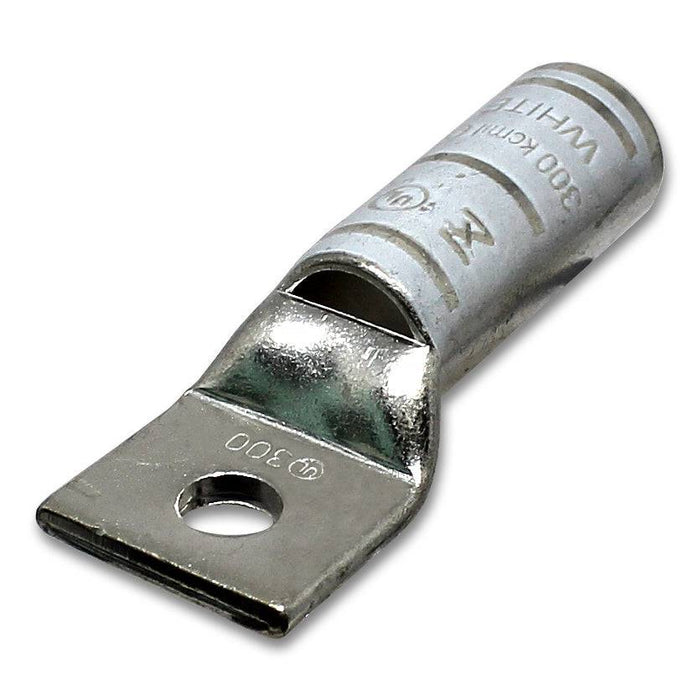

LB30012 - 300MCM Long Compression Lug - 1/2" Stud Size
Original price
$7.32
-
Original price
$7.32
Original price
$7.32
$7.32
-
$7.32
Current price
$7.32
SKU LB30012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 300MCM |
| Stud Size: | 1/2" |
| Color: | White |
| L: | 83.8mm (3.30") |
| L1: | 25.4mm (1.00") |
| D: | 30.2mm (1.19") |
| D1: | 20.9mm (0.82") |
| D2: | 17.1mm (0.67") |
| B: | 48.2mm (1.90") |
| E: | 12.9mm (0.51") |
| F: | 3.75mm (0.15") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 445A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
