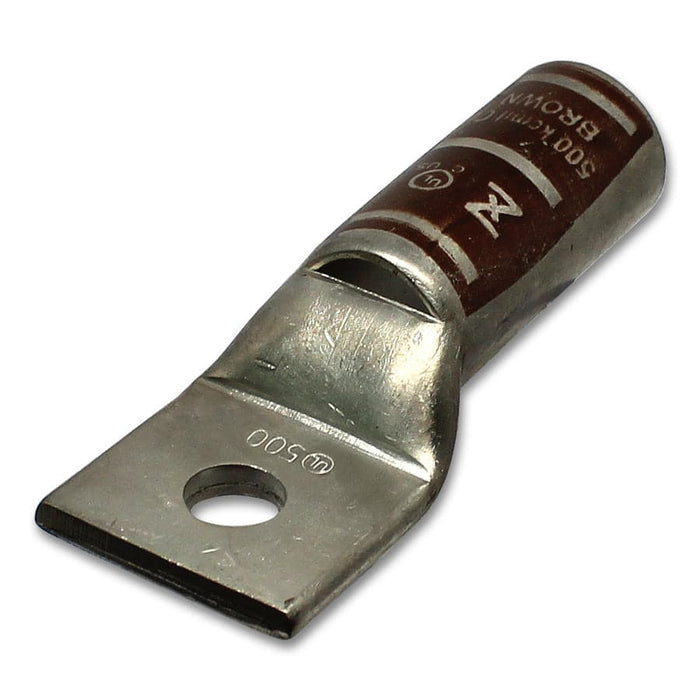

LB50012 - 500MCM Long Compression Lug - 1/2" Stud Size
Original price
$15.88
-
Original price
$15.88
Original price
$15.88
$15.88
-
$15.88
Current price
$15.88
SKU LB50012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 500MCM |
| Stud Size: | 1/2" |
| Color: | Brown |
| L: | 104.1mm (4.10") |
| L1: | 33.0mm (1.30") |
| D: | 39.1mm (1.72") |
| D1: | 26.9mm (1.09") |
| D2: | 21.8mm (0.86") |
| B: | 57.1mm (2.25") |
| E: | 12.9mm (0.51") |
| F: | 4.9mm (0.19") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 380A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
