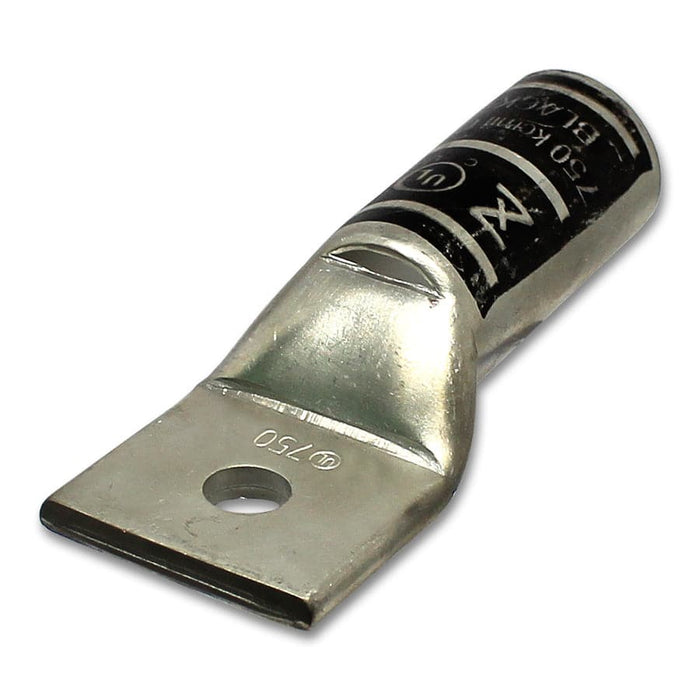

LB75012 - 750 MCM Long Compression Lug - 1/2" Stud Size, 1 Piece
Original price
$27.60
-
Original price
$27.60
Original price
$27.60
$27.60
-
$27.60
Current price
$27.60
SKU LB75012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 750MCM |
| Stud Size: | 1/2" |
| Color: | Black |
| L: | 121.4mm (4.78") |
| L1: | 40.6mm (1.60") |
| D: | 48.2mm (1.90") |
| D1: | 33.0mm (1.30") |
| D2: | 26.8mm (1.05") |
| B: | 63.5mm (2.50") |
| E: | 12.9mm (0.15") |
| F: | 6.0mm (0.24") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 535A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
