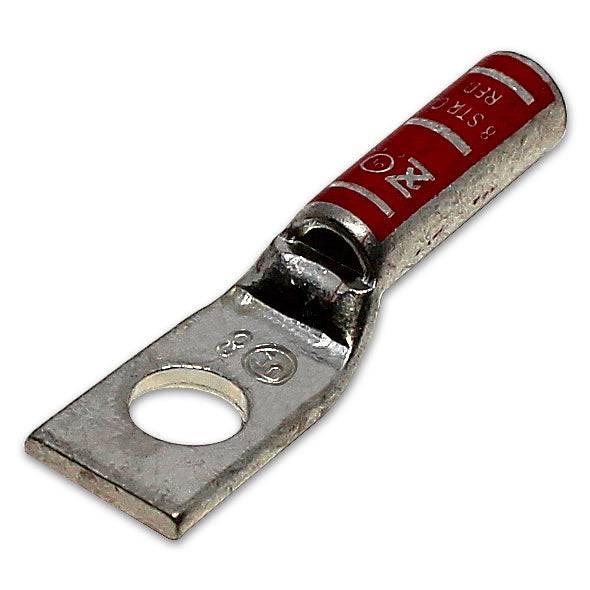

LB810 - 8AWG Long Compression Lug - #10 Stud Size
Original price
$0.68
-
Original price
$0.68
Original price
$0.68
$0.68
-
$0.68
Current price
$0.68
SKU LB810
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | #10 |
| Color: | Red |
| L: | 38.9mm (1.53") |
| L1: | 15.2mm (0.60") |
| D: | 11.1mm (0.44") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 20.5mm (0.81") |
| E: | 5.5mm (0.22") |
| F: | 1.9mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
