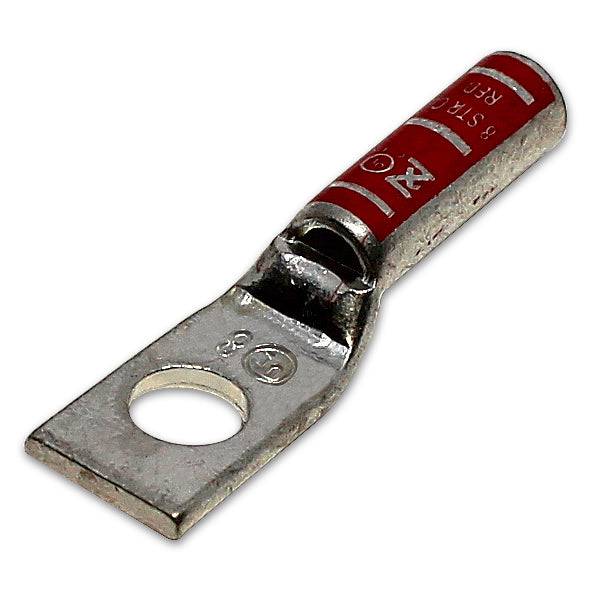

LB8516 - 8AWG Long Compression Lug - 5/16" Stud Size
Original price
$0.71
-
Original price
$0.71
Original price
$0.71
$0.71
-
$0.71
Current price
$0.71
SKU LB8516
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | 5/16" |
| Color: | Red |
| L: | 42.7mm (1.68") |
| L1: | 19.0mm (0.75") |
| D: | 13.7mm (0.54") |
| D1: | 7.1mm (0.28") |
| D2: | 4.8mm (0.19") |
| B: | 20.5mm (0.81") |
| E: | 8.7mm (0.34") |
| F: | 1.5mm (0.06") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
