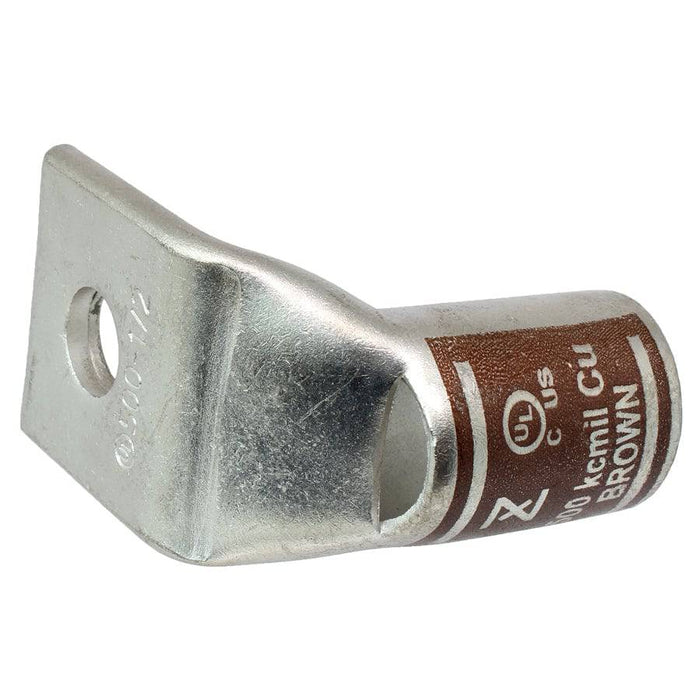

LBF50012 - 90 Degree Long Barrel Compression Lug - 500MCM - 1/2" Stud
Original price
$19.84
-
Original price
$19.84
Original price
$19.84
$19.84
-
$19.84
Current price
$19.84
SKU LBF50012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 500MCM |
| Stud Size: | 1/2" Stud |
| Color: | Brown |
| A: | 26.9mm (1.06") |
| B: | 57.2mm (2.25") |
| C: | 21.8mm (0.86") |
| D: | 39.1mm (1.54") |
| E: | 13.0mm (0.51") |
| G: | 16.0mm (0.63") |
| Material: | Tin Plated Copper |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
| UL Approved: | Yes |
| Temperature Rating: | 90°C |
| Max Electrical Rating: | 35 KV |
| Max Electrical Current: | 380A |
Product Drawing:
Cross References
Cross Reference Parts:None
