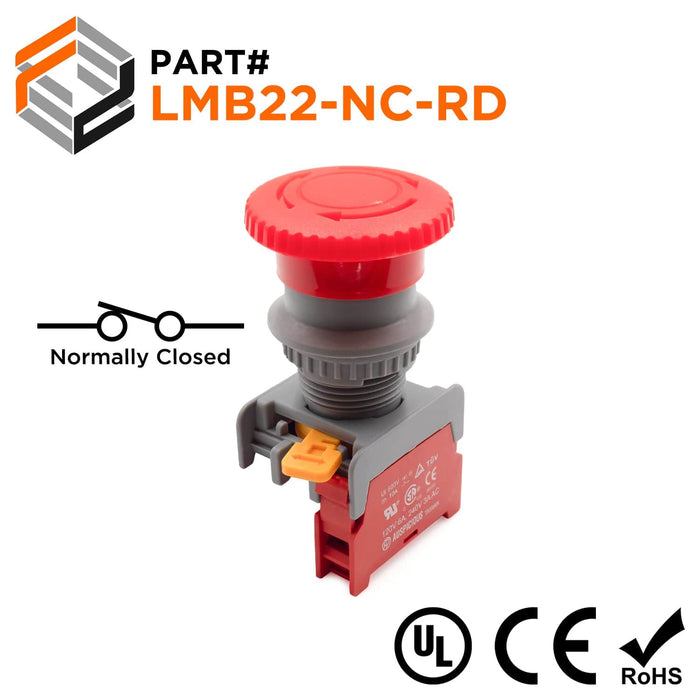

22mm Rotary Switch Push Button, NC Contact, 110-240v, 1 Piece - LMB22-NC-RD

Original price $5.64 - Original price $5.64
Original price
$5.64
$5.64 - $5.64
Current price $5.64
SKU LMB22-NC-RD
Availability:
in stock, ready to be shipped
Quantity: 1 Piece
Rotary head switches resemble mushroom head buttons but are turned rather than pushed. To operate, you must rotate it in the direction displayed on top. Rotating it will open/close your electrica circuit connection. Then release it back to its default position in order to close/open it.

Dimensions & Features:

Type: Rotary Push Button Switch
Mounting Hole Size: 22mm
Color: Red
Type of Contact: Normally Closed (NC)
Number of Contacts: 1
Voltage Rating: 110v-240v
Enclosure Material: Reinforced Thermoplastic
Contact Material: Silver
Protection Degree: IP 65
Storage Temperature: -40oC to 80oC
Operating Temperature: -25oC to 70oC
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
