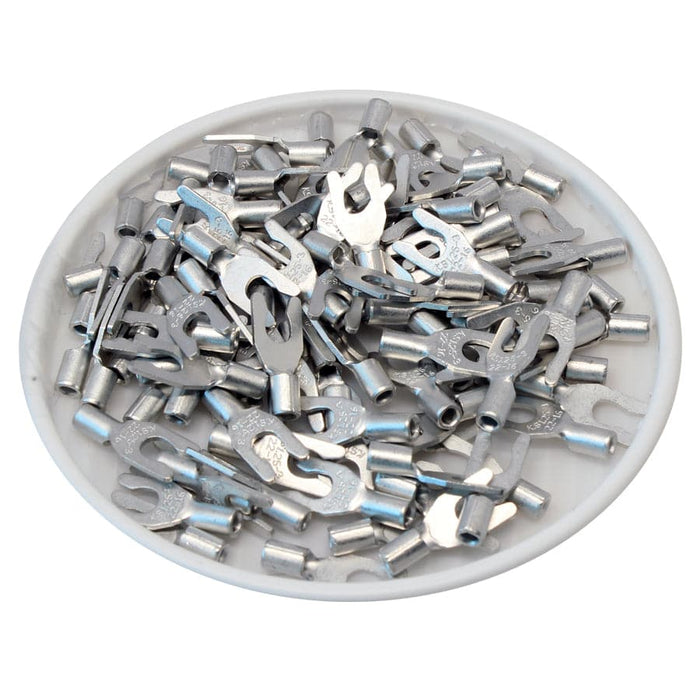

22-16 AWG Non Insulated Locking Spade Terminals, #4 Stud, UL Approved, 100 Pieces - LSNB1-32

Original price $6.98 - Original price $6.98
Original price
$6.98
$6.98 - $6.98
Current price $6.98
SKU LSNB1-32
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: #4
Seam: Brazed
Material: Tin-Plated Copper
T: 0.8mm (0.03")
L: 16.0mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 6.5mm (0.25")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
D2: 3.2mm (0.12")
Maxed Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes
