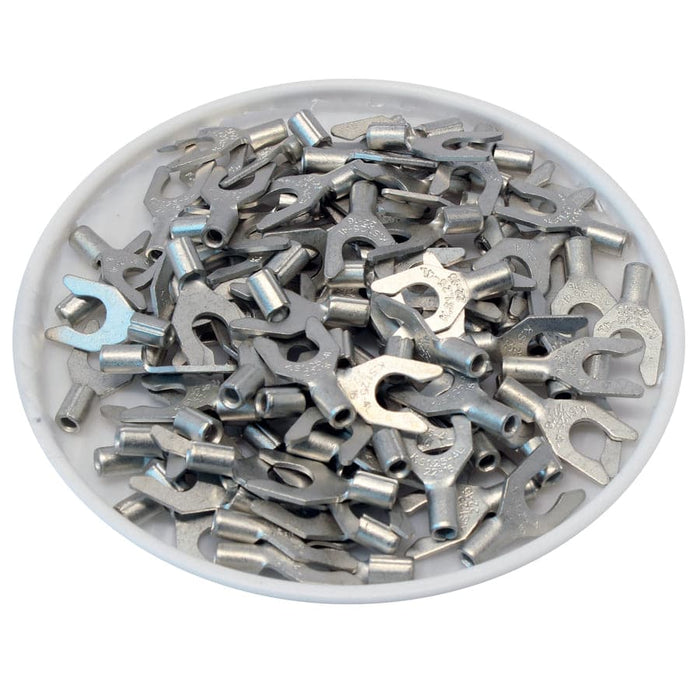

22-16 AWG Non Insulated Locking Spade Terminals, #8 Stud, UL Approved, 100 Pieces - LSNBL1-4

Original price $8.79 - Original price $8.79
Original price
$8.79
$8.79 - $8.79
Current price $8.79
SKU LSNBL1-4
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces

NON INSULATED SPADE TERMINALS

Non-insulated spade terminals lock in place for tight and secure connection in cramped spaces. They allow the user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength.


Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #8
Seam: Brazed
Material: Tin-Plated Copper
T: 0.8mm (0.03")
L: 16.0mm (0.63")
F: 6.5mm (0.26")
E: 4.8mm (0.19")
W: 8.1mm (0.32")
D: 3.4mm (0.13")
D1: 1.7mm (0.07")
D2: 4.3mm (0.17")
Maxed Electrical Current: 30AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
