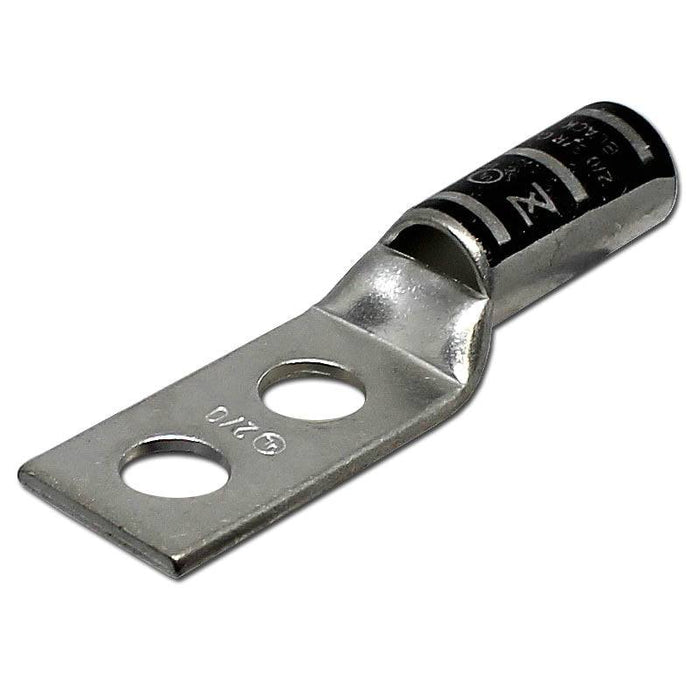

LT2014 - 2/0 AWG Compression Lug - 1/4" Stud Size
Original price
$3.04
-
Original price
$3.04
Original price
$3.04
$3.04
-
$3.04
Current price
$3.04
SKU LT2014
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| Stud Size: | 1/4" |
| Color: | Black |
| L: | 71.1mm (2.80") |
| L1: | 34.3mm (1.35") |
| L2: | 15.9mm (0.63") |
| D: | 20.8mm (0.82") |
| D1: | 14.2mm (0.56") |
| D2: | 11.7mm (0.46") |
| B: | 30.5mm 1.20") |
| E: | 7.1mm (0.28") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Max Amp Rating: | 265A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
