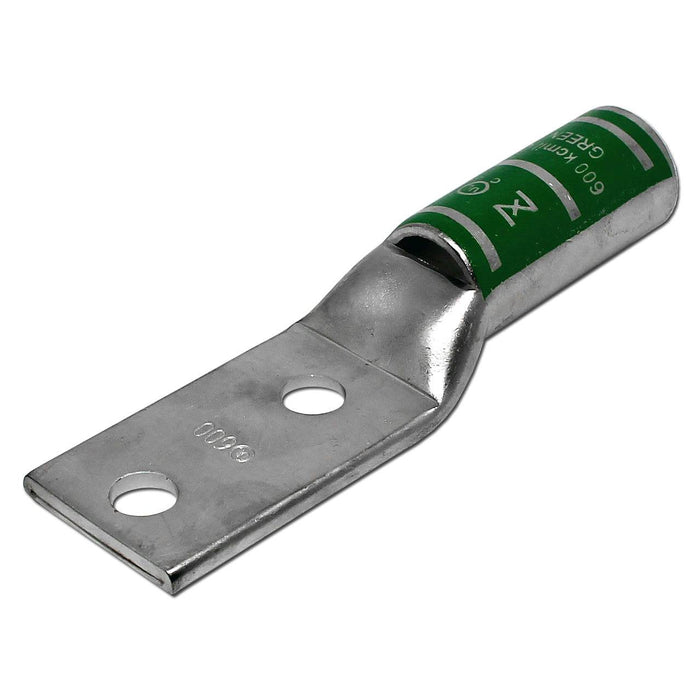

LT60012 - 600 MCM Compression Lug - 1/2" Stud Size, 1 Piece
Original price
$33.45
-
Original price
$33.45
Original price
$33.45
$33.45
-
$33.45
Current price
$33.45
SKU LT60012
Availability:
in stock, ready to be shipped
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 600MCM |
| Stud Size: | 1/2" |
| Color: | Green |
| L: | 153.7mm (6.05") |
| L1: | 72.4mm (2.85") |
| L2: | 44.5mm (1.75") |
| D: | 43.7mm (1.72") |
| D1: | 30.1mm (1.19") |
| D2: | 24.0mm (0.95") |
| B: | 63.5mm (2.50") |
| E: | 13.0mm (0.51") |
| F: | 6mm (0.24") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Max Amp Rating: | 420A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
