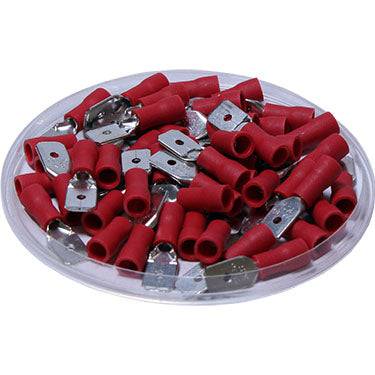

MDD1-110(5) - MALE - 22-16AWG Double Crimp Quick Disconnects - Vinyl

Original price $8.17 - Original price $8.17
Original price
$8.17
$8.17 - $8.17
Current price $8.17
SKU MDD1-110(5)
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
Insulation Material: Vinyl
Terminal Material: Tin-Plated Brass
Nema Tab: 0.5mm x 2.8mm (0.02" x 0.11")
Max Electrical Rating: 105°C (221°F) - 600 Volts
T: 0.5mm (0.02")
L: 19.2mm (0.76")
F: 6.5mm (0.25")
B: 10.5mm (0.41")
W: 2.8mm (0.11")
D: 4.0mm (0.16")
C: 1.7mm (0.07")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
