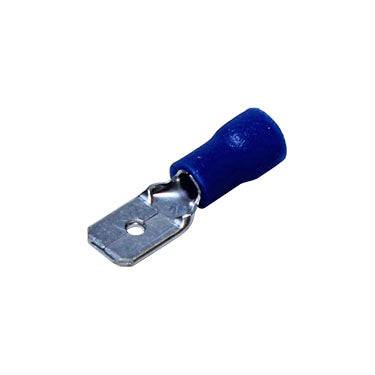

MDD2-187(5) - MALE - 16-14AWG Double Crimp Quick Disconnects - Vinyl

Original price $9.95 - Original price $9.95
Original price
$9.95
$9.95 - $9.95
Current price $9.95
SKU MDD2-187(5)
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Terminal Material: Tin Plated Brass
Terminal Insulation: Vinyl
Voltage Rating: 600 Volts
AMP Rating: 10-15AMP
Temperature Rating: 105oC
NEMA Tab: 0.02" X 0.18" (0.5mm X 4.75mm)
L: 19.8mm (0.78")
F: 6.5mm (0.25")
W: 4.8mm (0.18")
T: 0.5mm (0.20")
B: 10.5mm (0.41")
D: 4.7mm (0.18")
C: 2.3mm (0.09")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
