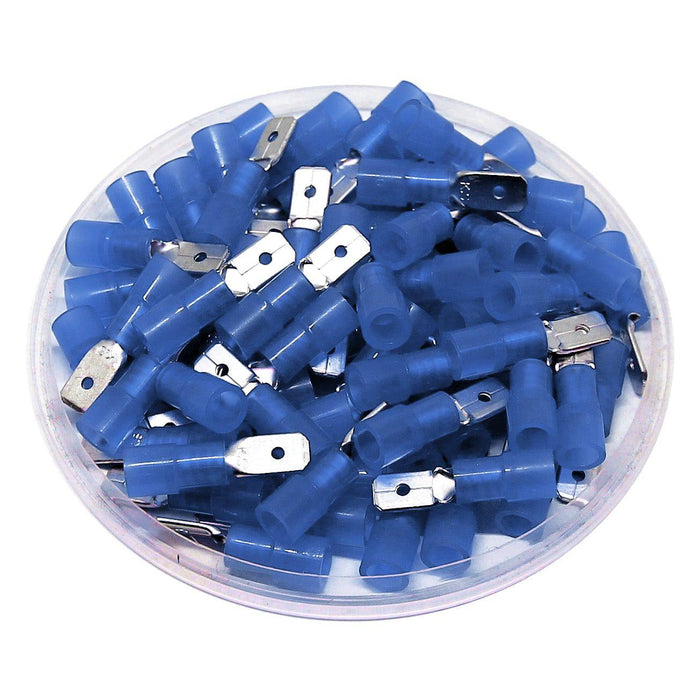

MDNY2-187(5) - MALE 16-14AWG Quick Disconnects Nylon
Original price
$6.61
-
Original price
$6.61
Original price
$6.61
$6.61
-
$6.61
Current price
$6.61
SKU MDNY2-187(5)
Availability:
in stock, ready to be shipped
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Brass |
| Nema Tab: | 0.5 x 4.75mm (0.02 x 0.18") |
| Temperature Rating: | 75°C |
| Voltage Rating: | 300 Volts |
| Max Electrical Current: | 15AMP |
| L: | 20.0mm (0.79") |
| F: | 6.5mm (0.26") |
| B: | 11.0mm (0.43") |
| W: | 4.8mm (0.19") |
| D: | 4.5mm (0.18") |
| C: | 2.3mm (0.09") |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
