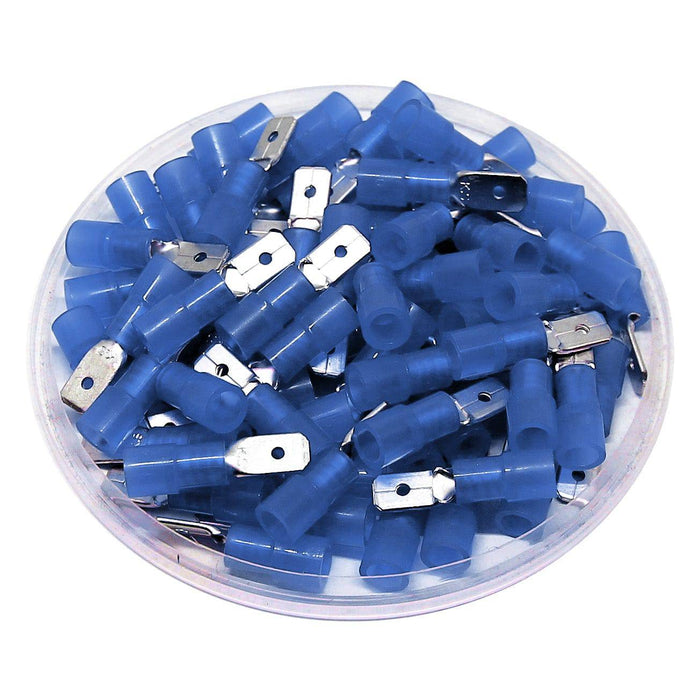

MDNYD2-187(8) - Nylon Insulated Male Quick Disconnect - Double Crimp - 16-14 AWG

Original price $10.01 - Original price $10.01
Original price
$10.01
$10.01 - $10.01
Current price $10.01
SKU MDNYD2-187(8)
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
W: 4.8mm (0.19")
F: 6.5mm (0.26")
L: 20mm (0.79")
B: 11mm (0.43")
D: 4.5mm (0.18")
C: 2.3mm (0.09")
Nema Tab: 0.8 x 4.8mm (0.032 x 0.187")
Terminal Material: Brass (with copper sleeve)
Insulation Material: Nylon
Electrical Rating: 105°C - 600 Volts
Amp Rating: 15AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
