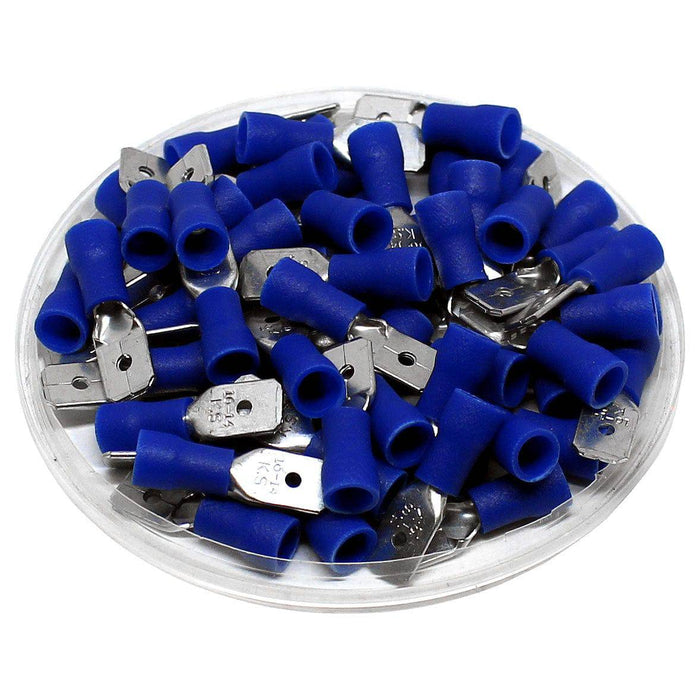

MDV2-250 - Vinyl Insulated Quick Disconnect - 16 AWG to 14 AWG - Male

$5.87
SKU MDV2-250
Piece Quantity
Quick disconnects create a splice when fitted together to easily connect or disconnect without causing damage to the terminal or insulation.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Terminal Material: Tin-Plated Copper
Terminal Insulation: Vinyl
Voltage Rating: 300 Volts
Temperature Rating: 75oC
NEMA Tab: 0.8mm X 6.35mm (0.32" X 0.25")
L: 21.0mm (0.83")
F: 7.7mm (0.30")
W: 10.0mm (0.39")
T: 6.4mm (0.25")
B: 4.5mm (0.18")
D: 2.3mm (0.09")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
