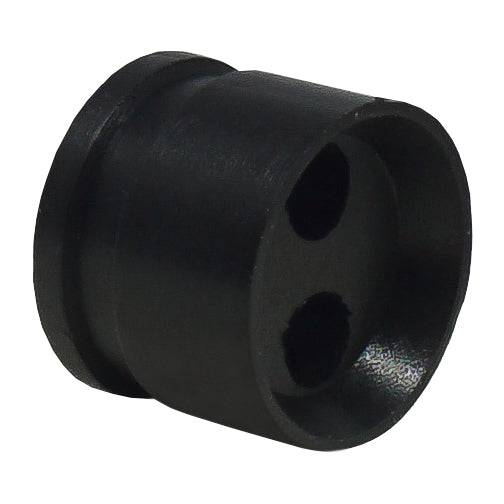

MHS1001 - Cable Gland Multi Hole Seals, Sizes: NPT 1/4", PG7, M12, 2-Hole x 2.5mm, IP68, 1 Piece
Original price
$0.12
-
Original price
$0.12
Original price
$0.12
$0.12
-
$0.12
Current price
$0.12
SKU MHS1001
Quantity: 1 Piece
Availability:
in stock, ready to be shipped
MULTIPLE HOLE CABLE GLAND SEALS
Multiple hole cable glands seals (also known as cord grip seals) are designed for passing and sealing multiple wires through a single cable gland. Save space and time by limiting the number of glands used for entry into your panel box, enclosure, or combiner box.
DIMENSIONS & FEATURES:
| Compatible Gland Sizes: | NPT 1/4", PG7, M12 (see chart below) |
| Holes: | 2 Holes |
| Hole Diameter (D): | 2.5mm (0.10") |
| Length (L): | 7.2mm (0.28") |
| Width (W): | 8.7mm (0.34") |
| Seal Material: | NBR (Nitrile Rubber) |
| Waterproof Rating: | IP68 |
| REACH Compliant: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
SEAL IS COMPATIBLE WITH THE FOLLOWING CABLE GLANDS:
| NPT THREAD: | PG THREAD: | METRIC THREAD: |
| N1405B | P0705B | M1205B |
| N1405BG | P0705BG | M1205BG |
| N1405GY | P0705GY | M1205GY |
| N1407B | P0707B | M1207B |
| N1407BG | P0707BG | M1207BG |
|
N1407GY |
P0707GY | M1207GY |
| N1405BR | P0705BR | M1205BR |
| N1407BR | P0707BR | M1207BR |
PRODUCT DRAWING:
DOCUMENT FILE:
