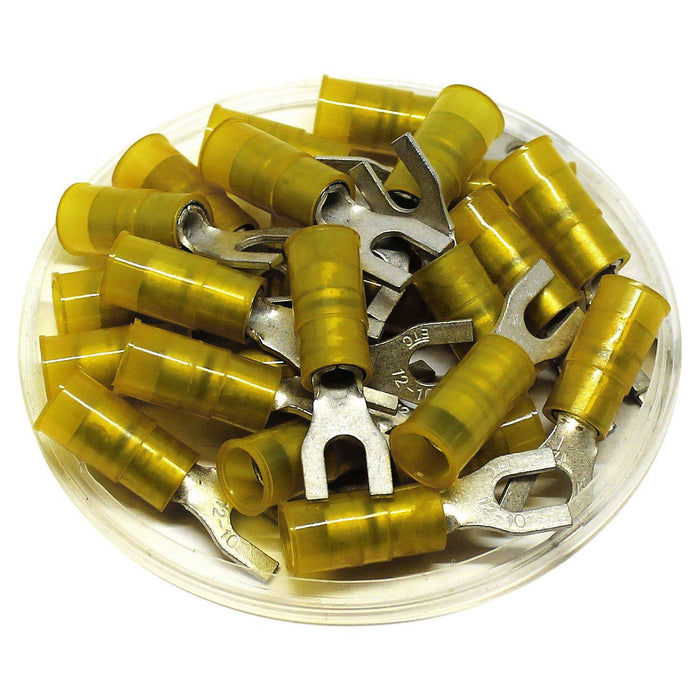

Molex 0191960077 - Nylon Double Crimp Fork Terminals - 12-10 AWG
Original price
$12.46
-
Original price
$12.46
Original price
$12.46
$12.46
-
$12.46
Current price
$12.46
SKU Molex 0191960077
| PRODUCT DESCRIPTION | |||
Nylon insulated fork terminals lock in place for tight and secure connection in cramped spaces. They allow the end user to quickly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL94V-2. |
|||
| DIMENSIONS AND FEATURES | |||
| Item Size | 12-10 AWG | TERMINAL MATERIAL: | Tin-Plated Copper |
| Color |
YELLOW |
INSULATION MATERIAL: | Nylon |
| T | 1mm (.04") | STUD SIZE: | #8 Stud |
| L | 30.3mm (1.19") | TEMPERATURE RATING: | 105° C |
| F | 9.8mm (.39") | VOLTAGE RATING: | 600 Volts |
| E | 16.8mm (.66") | UL RECOGNIZED: | YES |
| W | 9.5mm (.37") | CE CERTIFIED: | YES |
| D | 6.5mm (.26") | ROHS COMPLIANT: | YES |
| D1 | 3.4mm (.13") | ||
| D2 | 4.3mm (.17") | ||
|
TECHNICAL DRAWING |
|||
 |
|||
