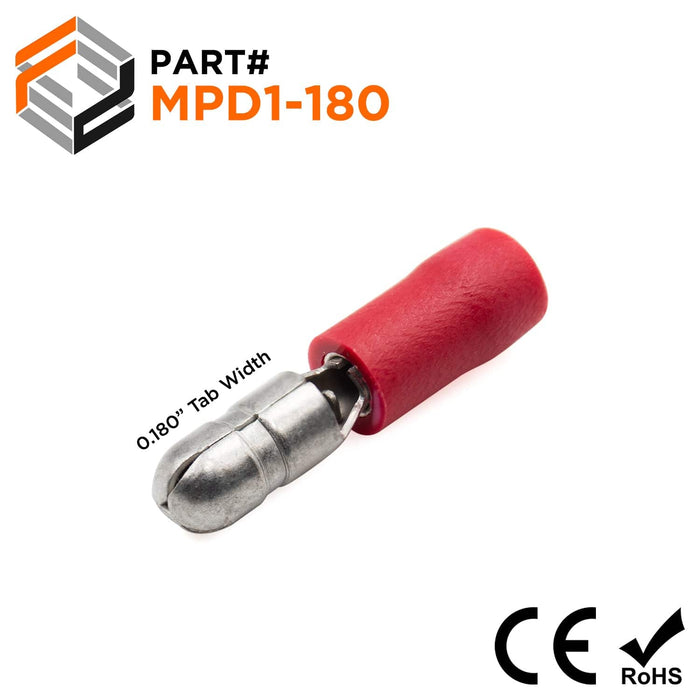

MPD1-180 - Vinyl Insulated Male Bullet Connector - 22-16 AWG - Double Crimp

Original price $11.03 - Original price $11.03
Original price
$11.03
$11.03 - $11.03
Current price $11.03
SKU MPD1-180
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.

Dimensions & Features:

Wire Range: 22-16 AWG
W: 4.5mm (0.177")
F: 9.0mm (0.354")
L: 21.5mm (0.854")
B: 10.5mm (0.413")
D: 4.0mm (0.157")
C: 1.7mm (0.07")
T: 0.4mm (0.016")
Terminal Material: Brass
Insulation Material: Vinyl
Insulation Color: Red
Temperature Rating: 105°C
Max AMP Rating: 10 AMP
UL Approved: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
