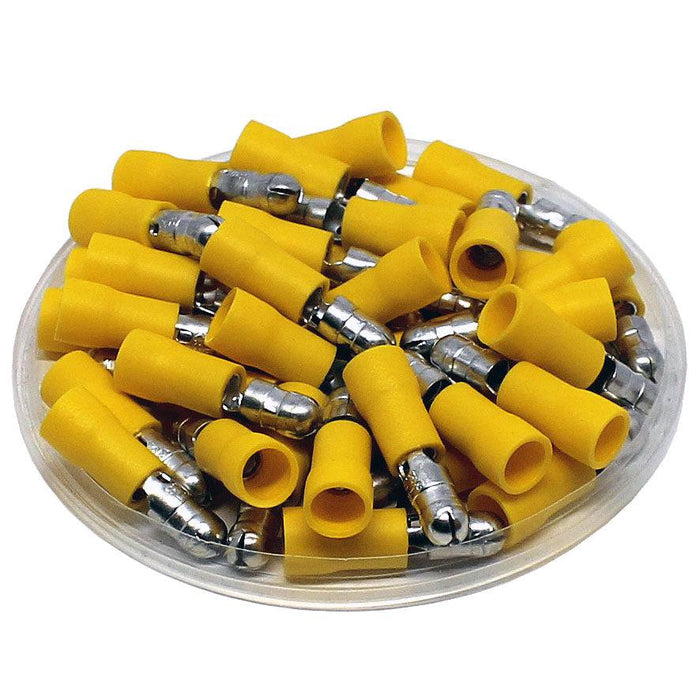

MPD5-195 - 12-10AWG Male Bullet Connector - Double Crimp
Original price
$13.34
-
Original price
$13.34
Original price
$13.34
$13.34
-
$13.34
Current price
$13.34
SKU MPD5-195
Availability:
in stock, ready to be shipped
Tin plated brass bullet type insulated terminals with copper sleeve on terminal barrel. Male and female fit to form a fully insulated in-line splice. This helps prevent shorting or flash-over when disconnected with power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| W: | 0.20" (5.0mm) |
| F: | 0.33" (8.5mm) |
| L: | 0.95" (24.0mm) |
| B: | 0.51" (13.0mm) |
| D: | 0.24" (6.2mm) |
| T: | 0.01" (0.4mm) |
| Terminal Material: | Brass |
| Insulation Material: | Vinyl |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC - 600 Volts |
| Max AMP Rating: | 24 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
