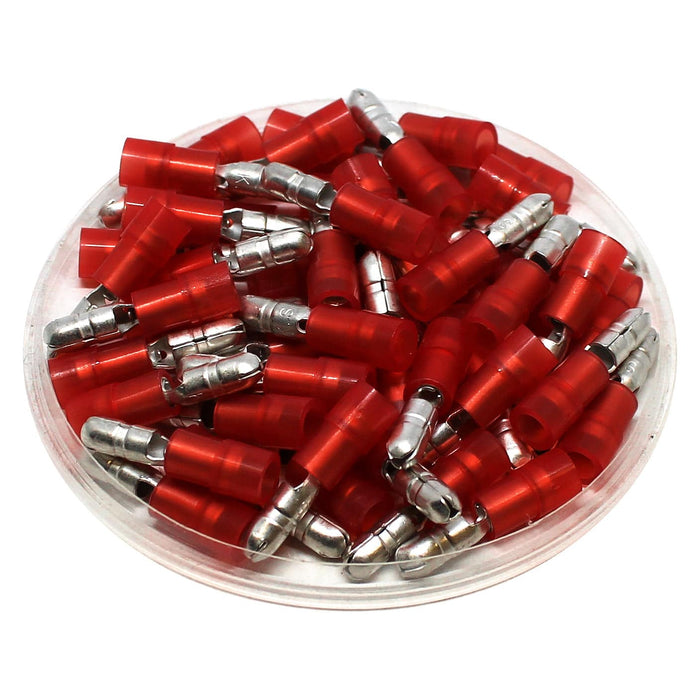

MPNY1-156 -22-16AWG Male Bullet Connector - NYLON
Original price
$7.96
-
Original price
$7.96
Original price
$7.96
$7.96
-
$7.96
Current price
$7.96
SKU MPNY1-156
Availability:
in stock, ready to be shipped
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| C: | 0.07" (1.7mm) |
| L: | 0.87" (22.0mm) |
| F: | 0.34" (8.5mm) |
| B: | 0.43" (11.0mm) |
| W: | 0.16" (4.0mm) |
| D: | 0.16" (4.0mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Red |
| Temperature Rating: | 105°C |
| Max AMP Rating: | 10 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
