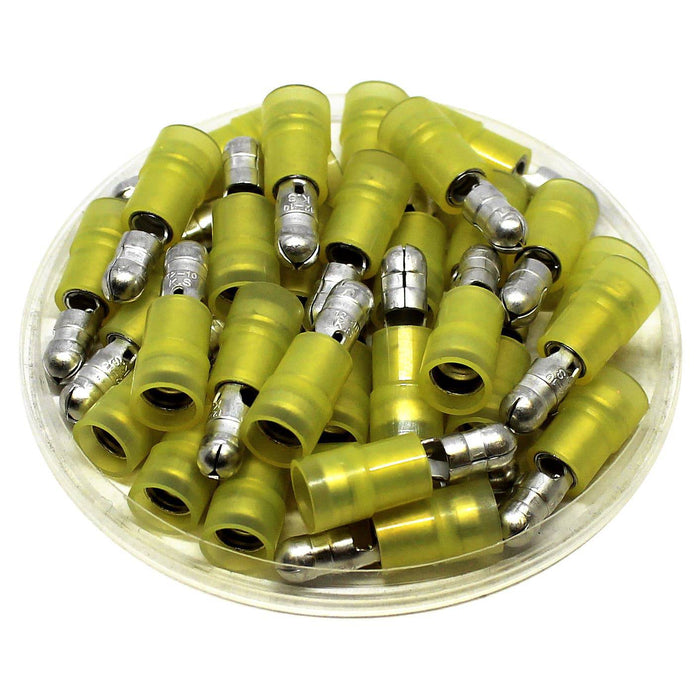

MPNY5-195 - 12 to 10 AWG Nylon Insulated Male Bullet Connectors, 100 Pieces
Original price
$10.72
-
Original price
$10.72
Original price
$10.72
$10.72
-
$10.72
Current price
$10.72
SKU MPNY5-195
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
| Wire Range: | 12-10 AWG |
| C: | 0.13" (3.4mm) |
| L: | 0.93" (23.5mm) |
| F: | 0.34" (8.5mm) |
| B: | 0.51" (13.0mm) |
| W: | 0.20" (5.0mm) |
| D: | 0.25" (6.3mm) |
| Terminal Material: | Tin-Plated Brass |
| Insulation Material: | Nylon |
| Insulation Color: | Yellow |
| Temperature Rating: | 105oC |
| Max AMP Rating: | 24 AMP |
| UL Recgonized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
