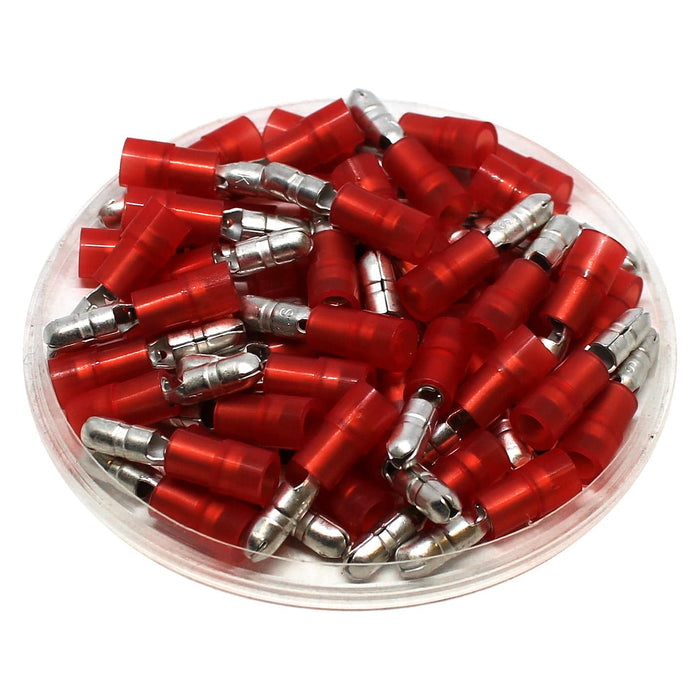

MPNYDL1-156 - Nylon Insulated Male Double Crimp Bullet Connectors - 22-16 AWG
Original price
$15.80
-
Original price
$15.80
Original price
$15.80
$15.80
-
$15.80
Current price
$15.80
SKU MPNYDL1-156
Availability:
in stock, ready to be shipped
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Product Drawing:
None:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Spec_Sheet_Coming_Soon_Graphic_a9a3d819-f863-4f21-a1d9-9e736ce43d28.jpg?v=1582128480)
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Youtube_Logo_100x100.png?v=1578686161)
Wire Range: | 22-16 AWG |
C: | 0.07" (1.7mm) |
L: | 0.99" (24.0mm) |
F: | 0.41" (10.5mm) |
B: | 0.43" (11.0mm) |
W: | 0.16" (4.0mm) |
D: | 0.16" (4.0mm) |
Terminal Material: | Tin-Plated Brass |
Insulation Material: | Nylon |
Insulation Color: | Red |
Temperature Rating: | 105oC |
Max AMP Rating: | 10 AMP |
UL Recgonized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Half_Insulated_Quick_Disconnects_MF.jpg?v=1592844646)
Cross References
Cross Reference Parts:None:
