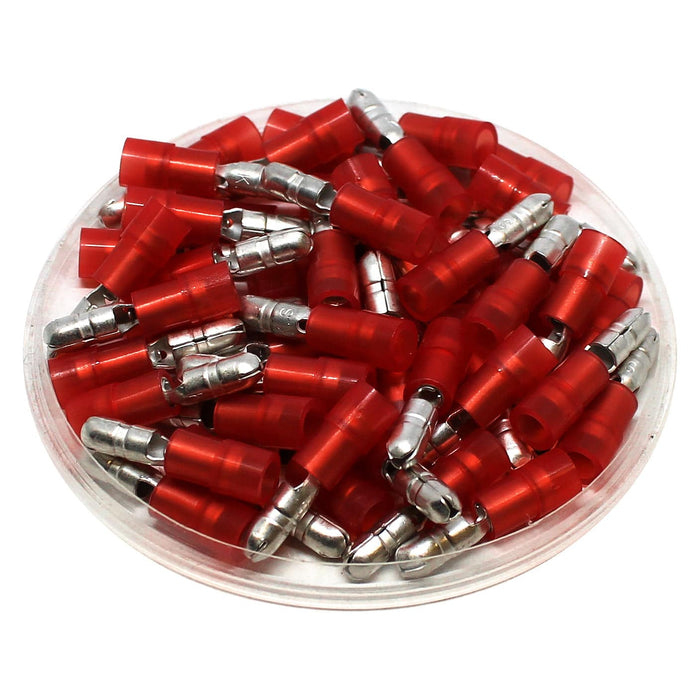

MPNYL1-156 -22-16AWG Male Bullet Connector - NYLON

Original price $8.61 - Original price $8.61
Original price
$8.61
$8.61 - $8.61
Current price $8.61
SKU MPNYL1-156
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Wire Range: 22-16 AWG
C: 0.07" (1.7mm)
L: 0.95" (24.0mm)
F: 0.41" (10.5mm)
B: 0.43" (11.0mm)
W: 0.16" (4.0mm)
D: 0.16" (4.0mm)
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Insulation Color: Red
Temperature Rating: 105oC
Max AMP Rating: 10 AMP
UL Recgonized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
