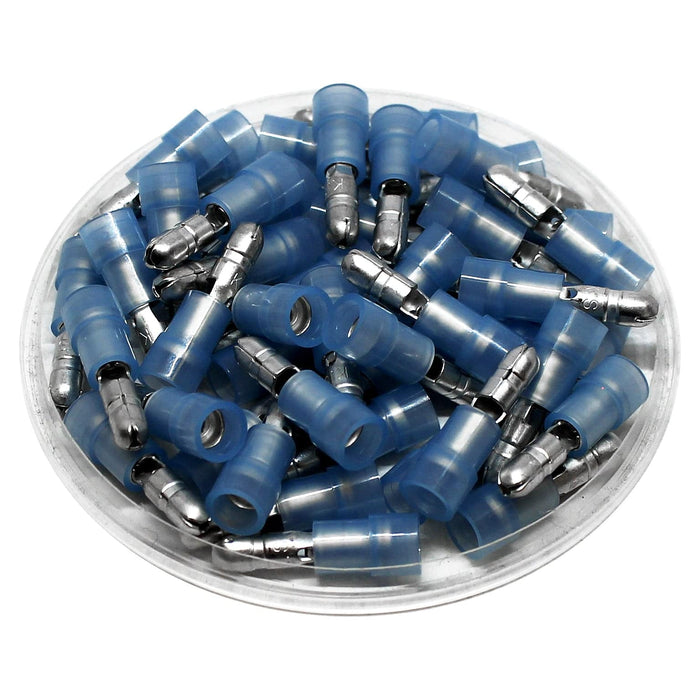

MPNYL2-156 - 16-14AWG Male Bullet Connector - NYLON

Original price $8.88 - Original price $8.88
Original price
$8.88
$8.88 - $8.88
Current price $8.88
SKU MPNYL2-156
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Tin-plated brass male and female insulated bullet connectors fit to form a fully insulated in-line splice that helps prevent shorting or flash-over when disconnected with the power on.
Wire Range: 16-14 AWG
C: 0.09" (2.3mm)
L: 0.95" (24.0mm)
F: 0.41" (10.5mm)
B: 0.43" (11.0mm)
W: 0.16" (4.0mm)
D: 0.18" (4.5mm)
Terminal Material: Tin-Plated Brass
Insulation Material: Nylon
Insulation Color: Blue
Temperature Rating: 105oC
Max AMP Rating: 15 AMP
UL Recgonized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:

Videos

Click below to check out our YouTube channel!
