NPTA34 - Nylon Cable Gland - Right Angle - 3/4" (14 NPT)

$2.70
SKU NPTA34
Quantity

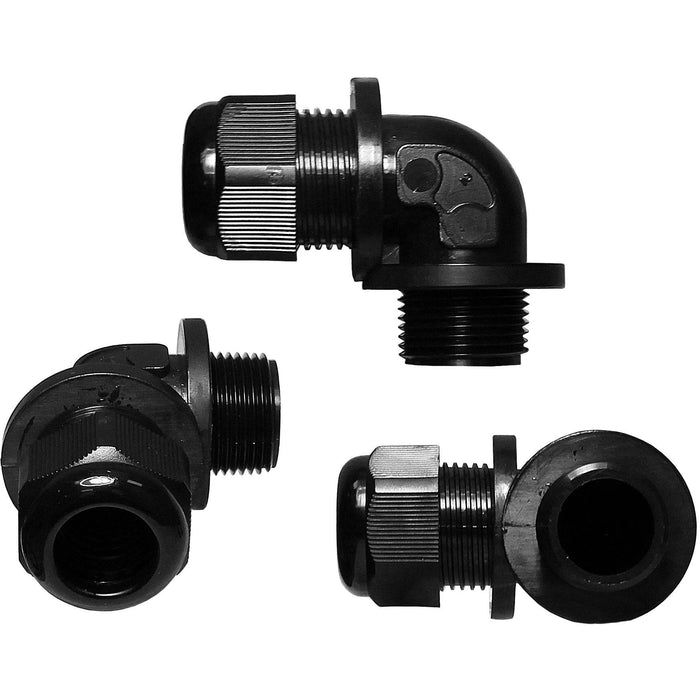

3/4" Right Angle NPT Thread Black Cable Gland (Does not include o-ring or locknut)

Dimensions & Features:

Thread Size: NPT 3/4"
Cable Range: 13-16mm
Color: Black
C1: 26.3mm (1.03")
C2: 25.6mm (1.00")
D2: 19.2mm (0.75")
B1: 16.4mm (0.64")
H: 41.6mm (1.63")
L: 64.5mm (2.53")
L1: 14.8mm (0.58")
L2: 12.6mm (0.49")
L3: 22.3mm (0.87")
Material: UL Approved 94UV-2 - Halogen Free
Ingress Protection: IP68
Flammability: PA (Nylon), UL 94
Hermetic Seal: NBR (Nitrile Rubber)
O-Ring: EPDM
Working Temperature: -40°C to 105°C
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
