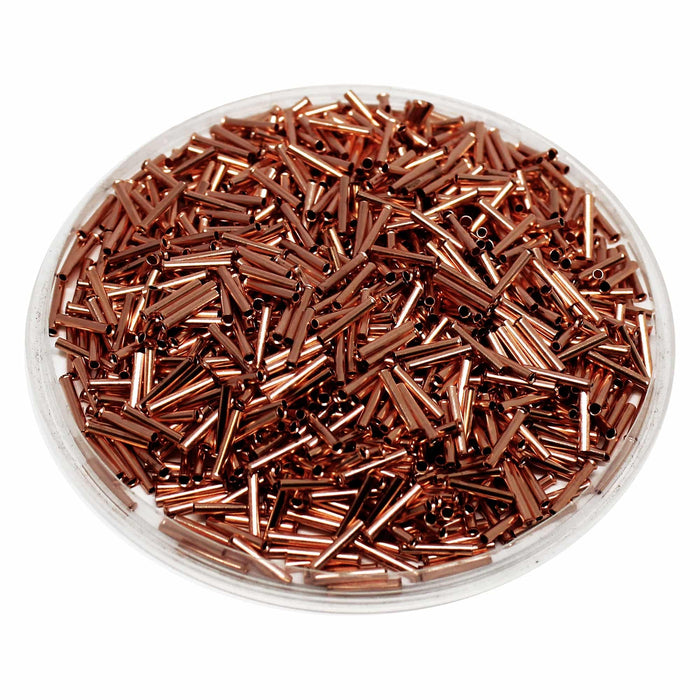

NT07506 - 20 AWG (6mm Pin) High Temperature Ferrules

Original price $11.11 - Original price $11.11
Original price
$11.11
$11.11 - $11.11
Current price $11.11
SKU NT07506
Availability:
in stock, ready to be shipped
Pack Quantity: 1000 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 20 AWG
Material: Copper
L1: 6mm (0.23")
D: 1.5mm (0.05")
D1: 1.2mm (0.04")
D2: 1.9mm (0.07")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 17A
Max Operating Temperature: 1984oF (1085oC)
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
