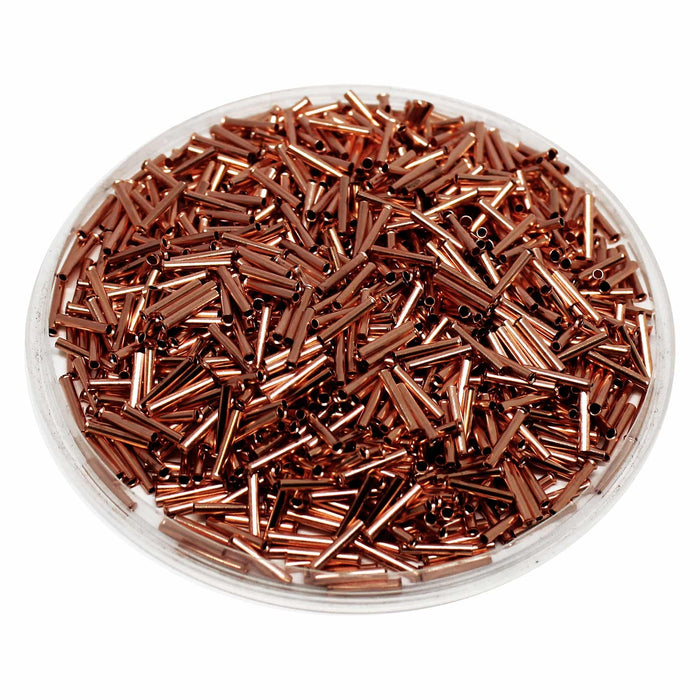

NT07508 - 20 AWG (8mm Pin) High Temperature Ferrules
Original price
$12.31
-
Original price
$12.31
Original price
$12.31
$12.31
-
$12.31
Current price
$12.31
SKU NT07508
Availability:
in stock, ready to be shipped
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Product Drawing:
None:
Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.
Dimensions & Features:
Wire Size: | 20 AWG |
Material: | Copper |
L1: | 8mm (0.31") |
D: | 1.5mm (0.05") |
D1: | 1.2mm (0.04") |
D2: | 1.9mm (0.07") |
Max Electrical Rating: | Up to 2000V |
Max Electrical Current: | 17A |
Max Operating Temperature: | 1984oF (1085oC) |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
