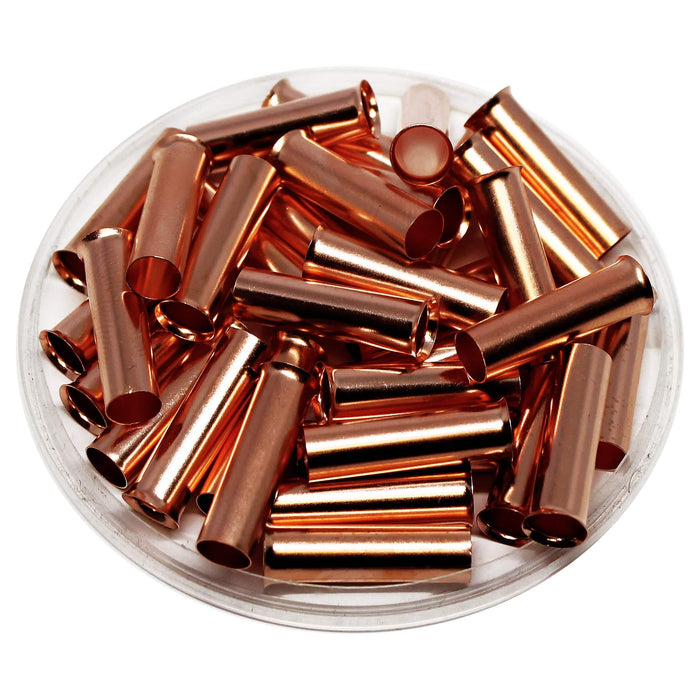

NT160022 - 6 AWG (22mm Pin) High Temperature Ferrules

Original price $30.13 - Original price $30.13
Original price
$30.13
$30.13 - $30.13
Current price $30.13
SKU NT160022
Availability:
in stock, ready to be shipped
Pack Quantity: 250 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 6 AWG
Material: Copper
L1: 22mm (0.86")
D: 6.4mm (0.25")
D1: 5.8mm (0.23")
D2: 7.8mm (0.31")
Max Electrical Rating: Up to 2000V
Max Electrical Current: 95A
Max Operating Temperature: 1984oF (1085oC)
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
