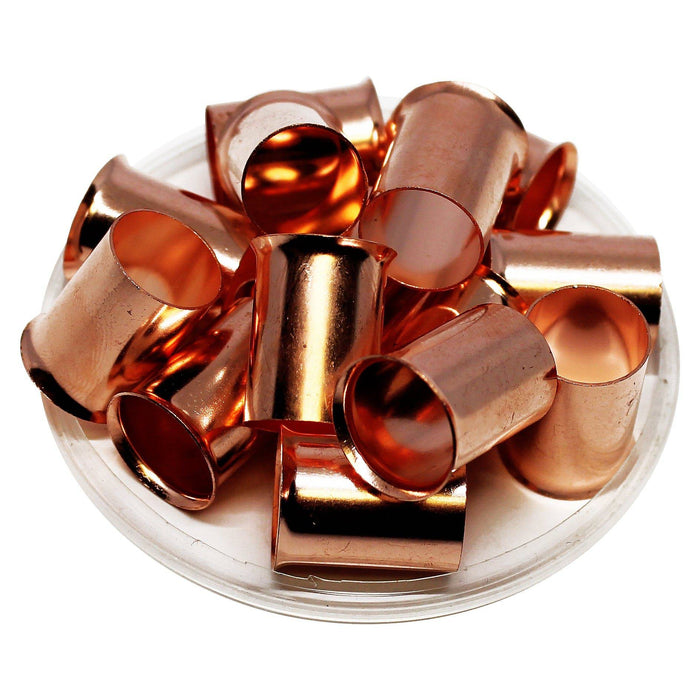

NT700025 - 2/0 AWG (25mm Pin) High Temperature Ferrules

Original price $27.49 - Original price $27.49
Original price
$27.49
$27.49 - $27.49
Current price $27.49
SKU NT700025
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces
A Wire Ferrule is a connector used to terminate stranded wires (sometimes referred to as a cord end terminal or bootlace ferrule). Traditionally a wire ferrule is crimped to a stranded wire using a crimping tool (compression, ratchet, or pneumatic mechanism), thus turning the stranded wire into a solid one.

Wire Ferrules are offered without insulation (Non-Insulated Wire Ferrules), with plastic insulation for single wires (Single Insulated Wire Ferrules) and with a plastic insulation to accommodate two wires (Twin Wire Ferrules). Wire Ferrules are offered in Strips or Spools to be used with automatic crimping machines or multi-function crimping tools.

Dimensions & Features:

Wire Size: 2/0 AWG
Material: Copper
L1: 25mm (0.98")
D: 14.3mm (0.56")
D1: 13.5mm (0.53")
D2: 16.3mm (0.64")
Max Electrical Rating: 2000V
Max Electrical Current: 265A
Max Operating Temperature: 1984oF (1085oC)
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
