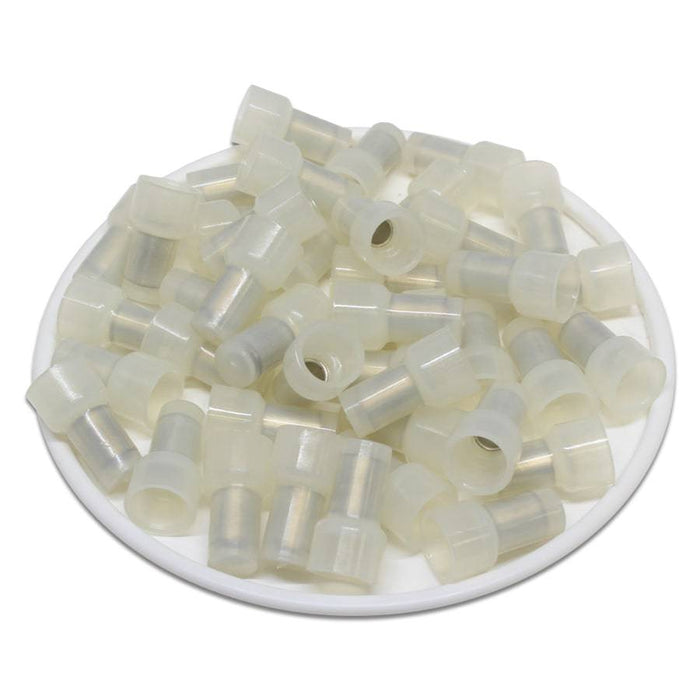

PB2 - 16 to 14 AWG Closed End Connectors, Pigtail Connectors, Color: Clear, 100 Pieces
Original price
$5.29
-
Original price
$5.29
Original price
$5.29
$5.29
-
$5.29
Current price
$5.29
SKU PB2
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Series CE closed end crimpable connectors are designed for use with both stranded and solid wires. They are vibration, chemical and corrosion resistant
Product Drawing:
Cembre: N 14-BEC
| Wire Range: | 16-14 AWG |
| L: | 0.79" (15.2mm) |
| F: | 0.35" (8.8mm) |
| D: | 0.25" (6.3mm) |
| W: | 0.23" (5.8mm) |
| T: | 0.02" (0.45mm) |
| E: | 0.28" (7.0mm) |
| C: | 0.09" (3.1mm) |
| Terminal Material: | Copper |
| Insulation Material: | UL Approved 94U-V Nylon 6/6 |
| Color: | Natural |
| Temperature Rating: | 105oC - 600 Volts |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Cembre: N 14-BEC
