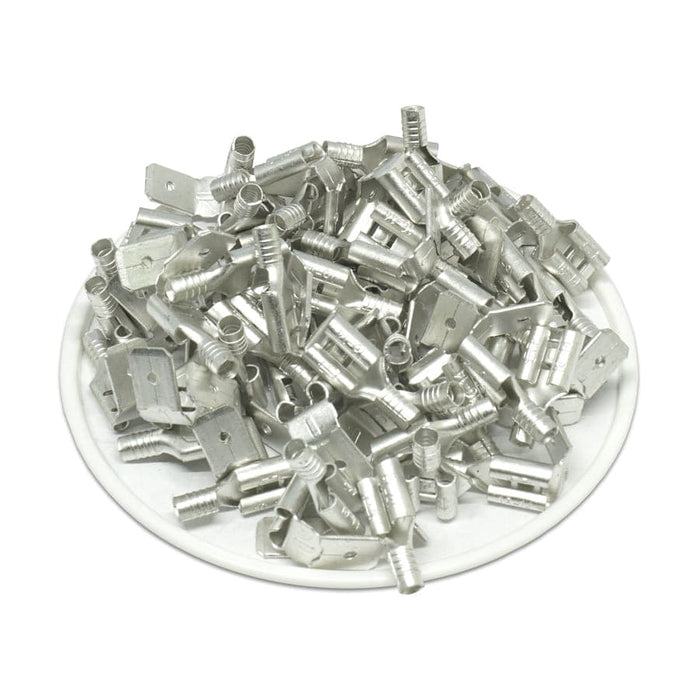

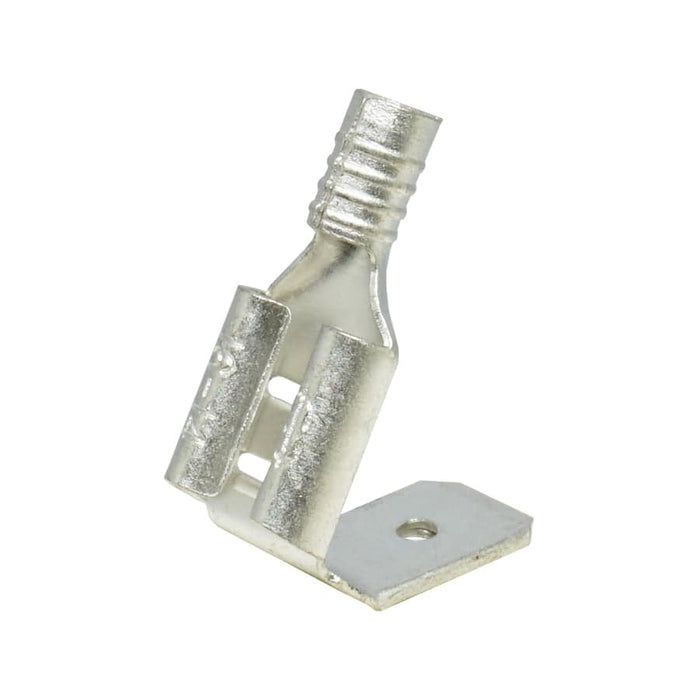

PBDN2-250 - 16-14AWG - .250 Uninsulated Piggyback Terminal - .8x6.3mm tab

Original price $8.16 - Original price $8.16
Original price
$8.16
$8.16 - $8.16
Current price $8.16
SKU PBDN2-250
Availability:
in stock, ready to be shipped
Pack Quantity: 100 pieces
Piggyback disconnects can be used when other male disconnects are limited. It allows another quick disconnect to be connected to its tab. This creates more versatility in points of connection. Multiple connections allow additional circuits to be added to existing equipment without a full rework.

Dimensions & Features:

Wire Range: 16-14 AWG
L: 16.1mm (0.63")
F: 7.8mm (0.31")
W: 6.7mm (0.26")
B: 5.2mm (0.20")
C: 2.4mm (0.09")
D: 3.4mm (0.13")
W1: 6.2mm (0.24")
F1: 8.7mm (0.34")
Nema Tab: 0.02" X 0.25" (0.8mm X 6.35mm)
Terminal Material: Brass
AMP Rating: 15 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None
