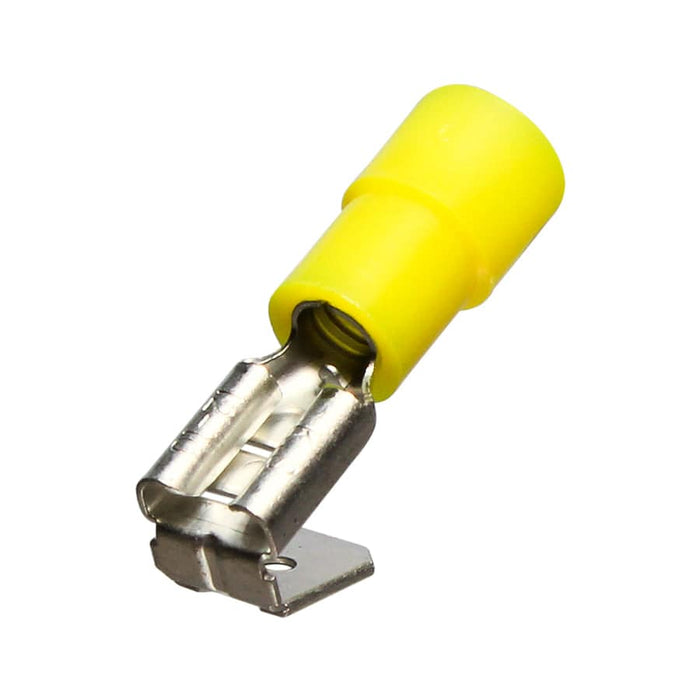

PBDNY5-250 - Nylon Insulated Piggyback Terminals - 12-10 AWG
Original price
$7.28
-
Original price
$7.28
Original price
$7.28
$7.28
-
$7.28
Current price
$7.28
SKU PBDNY5-250
Availability:
in stock, ready to be shipped
Vinyl insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal.
Dimensions & Features:
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/PBDV_Drawing_480x480.jpg?v=1587578459)
None
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Pdf_aca7efa3-896e-4c4c-baef-80e5c51a67fb_100x100.png?v=1578685893)
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Youtube_Logo_100x100.png?v=1578686161)
Dimensions & Features:
Wire Size: | 12-10 AWG |
Color: | Yellow |
Insulation Material: | Nylon |
Terminal Material: | Tin-Plated Brass |
Nema Tab: | 0.8mm x 6.35mm (0.032" x 0.250") |
Max Electrical Rating: | 105°C (221°F) - 600 Volts |
Max Electrical Current: | 24A |
T: | .04mm (.02") |
L: | 24mm (.95") |
F: | 8mm (.32") |
F1: | 8.2mm (.32") |
W: | 6.6mm (.26") |
D: | 5.5mm (.22") |
B: | 13mm (.51") |
W1: | 6.4mm (.25") |
UL Approved: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/PBDV_Drawing_480x480.jpg?v=1587578459)
