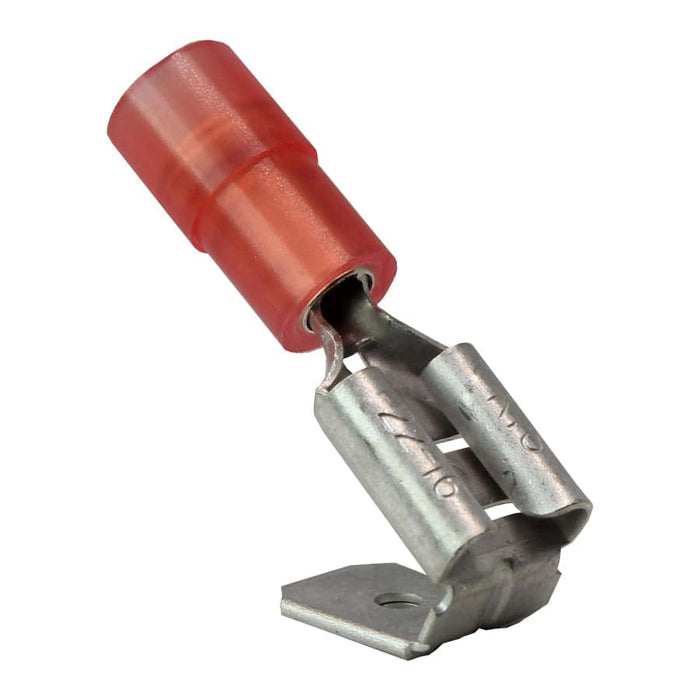

PBDNYD1-250 - Nylon Insulated Piggyback Terminals 22-16 AWG - Double Crimp

Original price $17.02 - Original price $17.02
Original price
$17.02
$17.02 - $17.02
Current price $17.02
SKU PBDNYD1-250
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
true
Nylon insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal. Double Crimp refers to an additional metal sleeve within the terminal to allow for a tighter hold around the wire, resulting in a more secure crimp.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
Insulation Material: Nylon
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 10A
T: .04mm (.02")
L: 23mm (.91")
F: 8mm (.32")
F1: 8.2mm (.32")
W: 6.6mm (.26")
D: 4mm (.16")
B: 11mm (.43")
W1: 6.4mm (.25")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes
