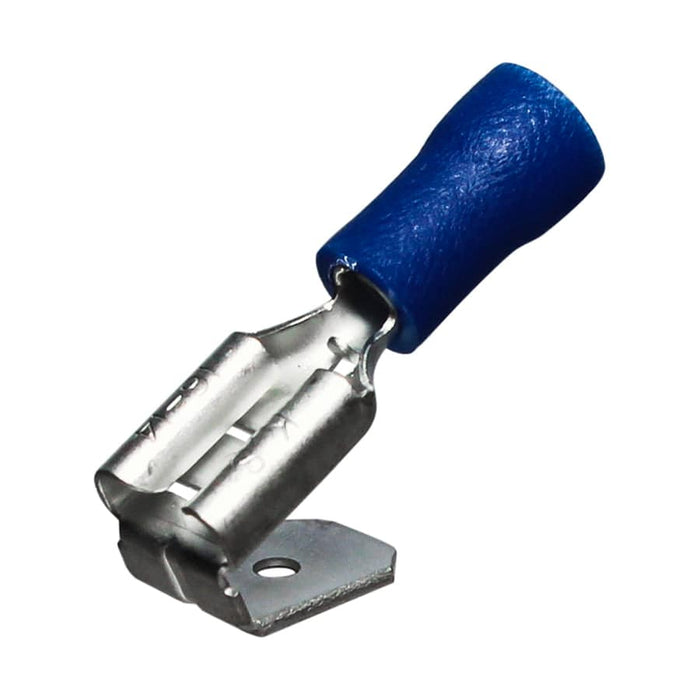

PBDV2-250 Vinyl Insulated Piggyback Terminals 16-14AWG

Original price $12.25 - Original price $12.25
Original price
$12.25
$12.25 - $12.25
Current price $12.25
SKU PBDV2-250
Availability:
in stock, ready to be shipped
Pack Quantity: 100 Pieces
Vinyl insulated double crimp piggy-back terminals create a splice when fitted together with their counterparts. These terminals allow for a second connection via the "piggy-back" tab on the back of the terminal.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
Insulation Material: Vinyl
Terminal Material: Tin-Plated Brass
Nema Tab: 0.8mm x 6.35mm (0.032" x 0.250")
Max Electrical Rating: 105°C (221°F) - 600 Volts
Max Electrical Current: 15A
T: .04mm (.02")
L: 22mm (.87")
F: 8mm (.32")
F1: 8.2mm (.32")
W: 6.6mm (.26")
D: 4.5mm (.18")
B: 10mm (.39")
W1: 6.4mm (.25")
UL Approved: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
